1000BASE-T Copper SFP Transceiver with 1.25Gbps Speed, 100m Range, and Low EMI
جزئیات محصول:
| محل منبع: | گوانگدونگ، شنژن |
| نام تجاری: | TAKFLY |
| گواهی: | CE,ROHS,REACH,ISO9001,ISO14001 |
| شماره مدل: | TK-G3-RJ45 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 عدد |
|---|---|
| قیمت: | US$2.20 ~ US$597.02 |

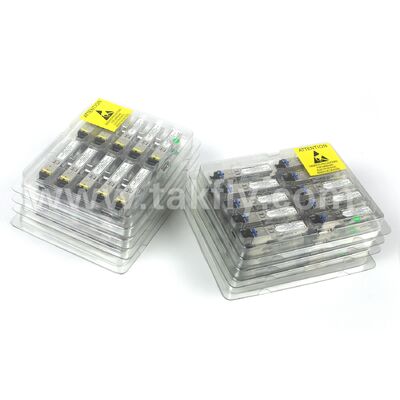

| جزئیات بسته بندی: | اسپون + جعبه + کارتن |
| زمان تحویل: | 3-7 روز کاری |
| شرایط پرداخت: | L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام |
|
اطلاعات تکمیلی |
|||
| شماره مدل: | اتصال دهنده فیبر نوری | دمای انبار: | -40 درجه سانتیگراد ~ 85 درجه سانتیگراد |
|---|---|---|---|
| دستگاه های سیم کشی: | ODF | رنگ: | سفارشی سازی |
| نمونه رایگان: | بله | قطر بیرونی کانکتور: | 3.0 میلی متر، 2.0 میلی متر، 0.9 میلی متر |
| رنگ مسکن: | آبی، سبز، بژ | رسانه انتقال: | حالت تک حالت/ مالیت |
| ویژگی: | ضد آب | مواد: | پلاستیک |
| قابلیت تعویض: | ≤0.2dB | حالت فیبر: | 62.5/125μm OM1، 50/125μm OM2 |
| بندر: | جعبه فیبر هاب از پورت NINGBO | نام مدل: | کانکتور فیبر نوری |
| وزن: | 2 کیلوگرم | تکرارپذیری: | ≤0.2dB |
| قطر فیبر: | 125 میکرومتر | نوع مجمع: | مکانیکی |
| ماژول کانکتور: | 3.0 میلی متر | کابل اتصال od: | 0.9 میلی متر، 2.0 میلی متر، 3.0 میلی متر |
| ماندگاری: | ≥1000 بار | ظرفیت تولید: | 700000 قطعه در ماه |
| نوع صیقلی: | UPC ، APC | پرکننده: | گریس سیلیکون نوری |
| استقامت: | 500 چرخه | دمای عملیاتی: | -40 درجه سانتی گراد تا +85 درجه سانتی گراد |
| از دست دادن بازگشت کانکتور: | SMF: UPC≥50، APC≥60؛ MMF: ≥30 | اسپری نمکی: | 500 ساعت |
| زمان نصب: | در دهه 60 (بدون برش فیبر) | بسته: | SMD ، QFN-20 ، NRF24L01 ، کیسه پلی ، فیبر نوری |
| نوع: | تنظیم کننده ولتاژ ، منطق ICS ، ماژول فرستنده ، انتقال دو جهته تک الیاف تک حالت ، درایو IC | D/C: | جدیدترین ، جدید ، 2013+، 1234 ، RF فرستنده و ماژول گیرنده |
| فاصله: | 20 کیلومتر ، 300 متر ، 3 کیلومتر | برنامه: | ارتباط از راه دور ، هشدار ، رایانه ، سیستم مانیتور ویدیویی ، کانال فیبر 1x |
| دمای عملیاتی: | استاندارد ، -40 ~ 85 ، -10 درجه سانتیگراد 70 درجه سانتیگراد | طول موج: | 1310nm/1550nm ، 850nm ، 1490nm/1310nm ، 1310nm 1270nm |
| نام محصول: | Epon OLT PX20+ ، 433MHz MODULE TRANSCEIVER UART ، 1.25G ماژول نوری Bidi SFP ، SFP+ فرستنده ، 1.25G م | گارانتی: | 365 روز ، 3 سال ، 1 سال |
| ولتاژ تغذیه: | 1.9-3.6V ، 0 ~ 110،2.7 V ~ 5.5 ولت ، مشترک | گواهی: | RoHS,CE RoHS FCC,ISO9001 ISO14001; CE |
| ارسال توسط: | پست DHL\UPS\Fedex\EMS\HK | اسکایپ: | Michella_fang ، Chaizhiquan91 ، Thomas65339 |
| منبع تغذیه: | 3.3 ولت | نرخ انتقال داده: | 155 متر ، 10 گرم |
| ولتاژ: | 1.9 تا 3.6 ولت، استاندارد | منبع: | FP ، VCSEL / PIN |
| قدرت اتلاف: | 0.1w ، w | وضعیت: | جدید ، 100 ٪ اصلی جدید |
توضیحات محصول
1000BASE-T Copper SFP – 1.25Gbps, 100m, Low EMI, Hot‑Pluggable
Product Overview
The TK-G1-RJ45 is a copper Small Form Pluggable (SFP) transceiver compliant with Gigabit Ethernet and 1000BASE‑T standards (IEEE 802.3‑2002 and IEEE 802.3ab). It supports 1000Mbps data rates over unshielded twisted‑pair Category 5 cable up to 100 meters.
The module uses 5‑level Pulse Amplitude Modulation (PAM) signals on all four pairs (250 Mbps per pair) for full‑duplex data links. It provides standard serial ID information per SFP MSA (accessible via 2‑wire serial bus at address A0h). The physical layer IC can also be accessed via the same bus at address ACh.
Key Features
- Up to 1.25Gb/s bi‑directional data links
- Hot‑pluggable SFP footprint
- TX Disable and RX LOS (or without LOS) function
- Fully metallic enclosure for low EMI
- Low power dissipation: 1.05 W typical

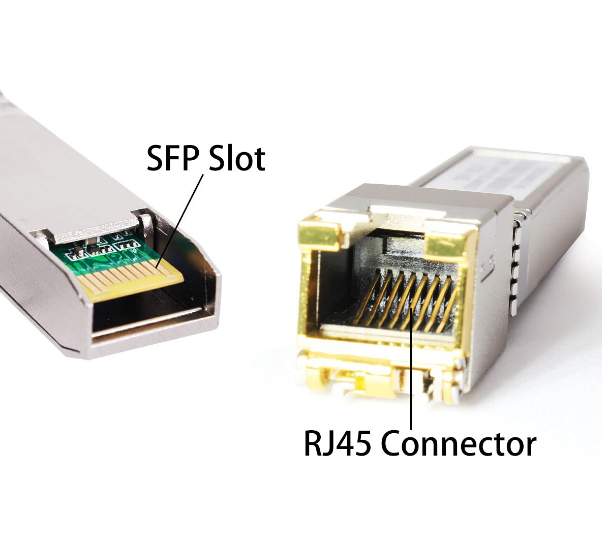

- Compact RJ‑45 connector assembly
- Access to physical layer IC via 2‑wire serial bus
- 1000BASE‑T operation in host systems with SERDES interface
- Operating case temperature: 0°C to +70°C (commercial) or -20°C to +85°C (extended)
Applications
- 1.25 Gigabit Ethernet over Cat 5 cable
Pin Definitions
Pin Diagram
Pin Descriptions
| PIN | NAME | FUNCTION | SEQ. | NOTES |
|---|---|---|---|---|
| 1 | VeeT | Transmitter Ground | 1 | VeeT and VeeR are connected in SFP. |
| 2 | TX_FAULT | Transmitter Fault Indication | 3 | Not Implemented. Tied to VeeT in SFP. |
| 3 | TX_DISABLE | Transmitter Disable | 3 | See TX Disable. |
| 4 | MOD DEF (2) | Module Definition 2 | 3 | Data line for serial ID and bidirectional data transfer bus. |
| 5 | MOD DEF (1) | Module Definition 1 | 3 | Clock line for serial ID and bidirectional data transfer bus. |
| 6 | MOD DEF (0) | Module Definition 0 | 3 | Tied to Vee in SFP. |
| 7 | RATE SELECT | Not Implemented | 3 | Not implemented. 33K pulldown to Vee in SFP. |
| 8 | LOS | Loss of Signal | 3 | See LOS option. |
| 9 | VeeR | Receiver Ground | 1 | VeeT and VeeR are connected in SFP. |
| 10 | VeeR | Receiver Ground | 1 | VeeT and VeeR are connected in SFP. |
| 11 | VeeR | Receiver Ground | 1 | VeeT and VeeR are connected in SFP. |
| 12 | RD- | Inverted Received Data out | 3 | AC coupled 100 ohm differential high speed data lines. |
| 13 | RD+ | Non‑Inverted Received Data out | 3 | AC coupled 100 ohm differential high speed data lines. |
| 14 | VeeR | Receiver Ground | 1 | VeeT and VeeR are connected in SFP. |
| 15 | VccR | Receiver Power | 2 | VccR and VccT are connected in SFP. |
| 16 | VccT | Transmitter Power | 2 | VccR and VccT are connected in SFP. |
| 17 | VeeT | Transmitter Ground | 1 | VeeT and VeeR are connected in SFP. |
| 18 | TD+ | Non‑inverted Data In | 3 | AC coupled 100 ohm differential high speed data lines. |
| 19 | TD- | Inverted Data In | 3 | AC coupled 100 ohm differential high speed data lines. |
| 20 | VeeT | Transmitter Ground | 1 | VeeT and VeeR are connected in SFP. |
Notes:
- Plug Seq.: Pin engagement sequence during hot‑plugging.
- TX Fault is not supported and is always connected to ground.
- TX Disable: Pin pulled up with 4.7kΩ. Low (0-0.8V): Transceiver on; High (2.0-3.465V) or open: Transceiver in reset.
- Mod‑Def 0,1,2: Pulled up with 4.7k-10kΩ on host board. Mod‑Def 0 grounded by module to indicate presence. Mod‑Def 1 = clock, Mod‑Def 2 = data for serial ID.
- RX_LOS: LVTTL compatible. Can be enabled/disabled (see ordering). When not used, tied to ground via 100Ω.
- RD-/+: AC coupled 100Ω differential outputs, terminate with 100Ω at host SERDES.
- TD-/+: AC coupled 100Ω differential inputs with 100Ω termination inside module.
Electrical Power Interface (+3.3V)
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions |
|---|---|---|---|---|---|---|
| Supply Current | Is | 320 | 375 | mA | 1.2W max over full range | |
| Input Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | Referenced to GND |
| Maximum Voltage | Vmax | 4 | V | Maximum |
Low‑Speed Signals Electrical Characteristics
| Parameter | Symbol | Min | Max | Units | Notes/Conditions |
|---|---|---|---|---|---|
| SFP Output LOW | VOL | 0 | 0.5 | V | 4.7k-10k pull‑up to host_Vcc |
| SFP Output HIGH | VOH | host_Vcc‑0.5 | host_Vcc+0.3 | V | 4.7k-10k pull‑up to host_Vcc |
| SFP Input LOW | VIL | 0 | 0.8 | V | 4.7k-10k pull‑up to Vcc |
| SFP Input HIGH | VIH | 2 | Vcc+0.3 | V | 4.7k-10k pull‑up to Vcc |
High‑Speed Electrical Interface (Transmission Line - SFP)
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions |
|---|---|---|---|---|---|---|
| Line Frequency | fL | 125 | MHz | 5‑level encoding per IEEE 802.3 | ||
| Tx Output Impedance | Zout,TX | 100 | Ω | Differential, 1MHz-125MHz | ||
| Rx Input Impedance | Zin,RX | 100 | Ω | Differential, 1MHz-125MHz |
High‑Speed Electrical Interface (Host - SFP)
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions |
|---|---|---|---|---|---|---|
| Single ended data input swing | Vinswing | 250 | 1200 | mV | Single ended | |
| Single ended data output swing | Voutswing | 350 | 800 | mV | Single ended | |
| Rise/Fall Time (20%‑80%) | Tr,Tf | 175 | psec | |||
| Tx Input Impedance (single ended) | Zin | 50 | Ω | |||
| Rx Output Impedance (single ended) | Zout | 50 | Ω |
General Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Case Temperature (Commercial) | Tc | 0 | 70 | °C | |
| Operating Case Temperature (Extended) | Tc | -20 | 85 | °C | |
| Storage Temperature | -40 | 85 | °C |
Mechanical Specifications

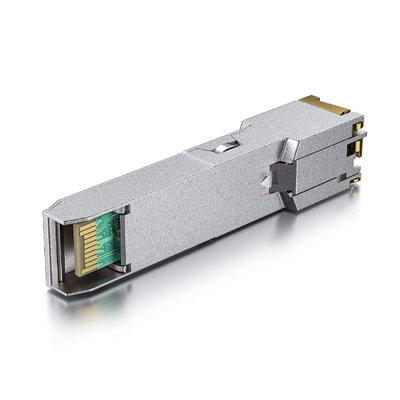

The host‑side of the TK-G1-RJ45 conforms to SFP MSA mechanical specifications. The front portion is larger to accommodate the RJ‑45 connector.
References
- Small Form Factor Pluggable (SFP) Transceiver Multi‑Source Agreement (MSA), September 2000
- IEEE802.3 - 2002
- "AT24C01A/02/04/08/16 2‑Wire Serial CMOS E2PROM", Atmel Corporation
Regulatory Compliance
| Feature | Reference | Performance |
|---|---|---|
| Electrostatic discharge (ESD) | IEC/EN 61000‑4‑2 | Compatible with standards |
| Electromagnetic Interference (EMI) | FCC Part 15 Class B, EN 55022 Class B (CISPR 22A) | Compatible with standards |
| Laser Eye Safety | FDA 21CFR 1040.10, 1040.11; IEC/EN 60825‑1,2 | Class 1 laser product |
| Component Recognition | IEC/EN 60950, UL | Compatible with standards |
| RoHS | 2002/95/EC | Compatible with standards |
| EMC | EN61000‑3 | Compatible with standards |
