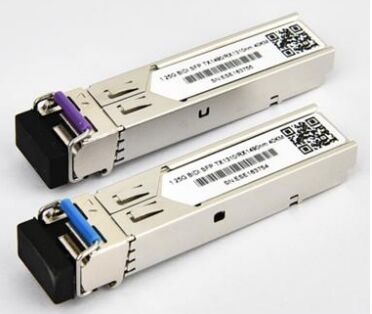

TK-B3424-3LCD20 1.25Gbps SFP Bi-Directional Transceiver, 20KM Reach Tx1310nm/Rx1490nm
جزئیات محصول:
| محل منبع: | چین ، شنژن |
| نام تجاری: | DF/OEM/Nuetral |
| گواهی: | CE/ROHS/REACH/ISO9001/ISO14001 |
| شماره مدل: | کابل اسپلیتر DF-PS-G 10/100/1000M PoE (13W) |
پرداخت:
| مقدار حداقل تعداد سفارش: | قابل مذاکره |
|---|---|
| قیمت: | negotiable denpend on QTY |
| جزئیات بسته بندی: | جعبه تاول + کارتن |
| زمان تحویل: | 5-9 روز کاری به QTY بستگی دارد |
| شرایط پرداخت: | Western Union، T/T، MoneyGram/Paypal |
| قابلیت ارائه: | 1000 قطعه در روز |
|
اطلاعات تکمیلی |
|||
| نام محصول: | فرستنده گیرنده دو جهته SFP TK-B3424-3LCD20 1.25 گیگابیت بر ثانیه، 20 کیلومتر دسترسی Tx1310nm/Rx1490n | ولتاژ تغذیه: | 3.15-3.6V |
|---|---|---|---|
| جریان عرضه: | 185-280 میلی آمپر | امپدانس دیفرانسیل ورودی: | 100 Ω |
| نوسان ورودی داده تک پایان: | 250-1200 میلی ولت | Transmit Disable Assert Time: | 10 ما |
| یک نوسان خروجی داده با پایان: | 250-800 میلی ولت | رد منبع تغذیه: | 100 mVpp |
| دمای کاری: | 0 درجه سانتیگراد تا 70 درجه سانتیگراد | دمای ذخیره سازی: | -40 درجه سانتی گراد تا +85 درجه سانتی گراد (صنعتی) |
| گارانتی: | 1 سال، تعمیر و نگهداری مادام العمر | برند فیبر: | "کارنینگ"، "یو اف سی"، "او اف اس"، "دراک" |
| برجسته کردن: | 1.25Gbps SFP transceiver 20KM reach,Bi-Directional SFP transceiver Tx1310nm/Rx1490nm,Optical transceiver module with 20KM range,Bi-Directional SFP transceiver Tx1310nm/Rx1490nm,Optical transceiver module with 20KM range |
||
توضیحات محصول
The SFP-BIDI transceivers are high-performance, cost-effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps with 20KM transmission distance over single-mode fiber.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472 specifications.
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
- Dual data-rate of 1.25Gbps/1.063Gbps operation
- 1310nm FP laser and PIN photodetector for 20KM transmission
- Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
- Digital Diagnostic Monitoring with Internal or External Calibration
- Compatible with SONET OC-24-LR-1
- RoHS compliant
- +3.3V single power supply
- Operating case temperature range: 0°C to +70°C (Commercial) / -40°C to +85°C (Industrial)
Notes:
1. Connected directly to TX data input pins. AC coupled thereafter.
2. Or open circuit.
3. Into 100 ohms differential termination
4. 20 - 80%
5. Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
6. Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.
- 25+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Samples: 1-3 working days
Mass Production Orders: 3-7 working days
Packaging: Plastic bags, cartons, and pallets available per request
Please provide your email or contact information through our website to receive our catalogue and price list.
Yes, we may consider discounts for multiple container loads of mixed goods.
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
EXW, FOB, CFR, CIF, DDU
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Yes, we can manufacture products based on your samples or technical drawings.
