GJFXTKV Optical Cable MDPE/HDPE or LSZH 2-24F
جزئیات محصول:
| محل منبع: | چین ، شنژن |
| نام تجاری: | DF/OEM/Nuetral |
| گواهی: | CE/ROHS/REACH/ISO9001/ISO14001 |
| شماره مدل: | TK-PC-48F-SC-OS2-50M |
پرداخت:
| مقدار حداقل تعداد سفارش: | قابل مذاکره |
|---|---|
| قیمت: | negotiable denpend on QTY |
| جزئیات بسته بندی: | جعبه تاول + کارتن |
| زمان تحویل: | 5-9 روز کاری به QTY بستگی دارد |
| شرایط پرداخت: | Western Union، T/T، MoneyGram/Paypal |
| قابلیت ارائه: | 1000 قطعه در روز |
|
اطلاعات تکمیلی |
|||
| نام محصول: | کابل نوری GJFXTKV | شمارش فیبر: | 2-24 |
|---|---|---|---|
| قطر فیبر نوری (±1μm): | 125 میکرومتر | قطر پوشش فیبر نوری (±5μm): | 250μm |
| قطر لوله شل (میلی متر): | 1.8 2.2-2.5 3.0 | هسته تقویت شود: | نخ شیشه ای یا نخ آرامید |
| مکمل: | پرکننده | غلاف مواد غلاف: | MDPE/HDPE یا LSZH |
| رنگ: | مشکی | قطر خارجی (میلی متر): | 6.0; 8.0 |
| وزن کابل (کیلوگرم بر کیلومتر): | 45;55;85 | دمای عمل: | -20 ℃ 70 ℃ |
| برند فیبر: | "کارنینگ"، "یو اف سی"، "او اف اس"، "دراک" | ||
| برجسته کردن: | MDPE HDPE fiber optic cable,LSZH fiber optic cable,2-24F optical cable,LSZH fiber optic cable,2-24F optical cable |
||
توضیحات محصول
GJFXTKV Optical Cable MDPE/HDPE or LSZH 2-24F
The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking glass yarn/Aramid yarn. Then the cable is completed with a PE/LSZH sheath.
Product Applications
- Adopted to indoor distribution
- Suitable for communication equipment served
- With excellent waterproofing performance
- Meet various requirements of market and clients
Product Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- The following measures are taken to ensure the cable watertight:
- Loose tube filling compound
- 100% cable core filling
- Meet various requirements of market and clients
Optical Parameter and Properties

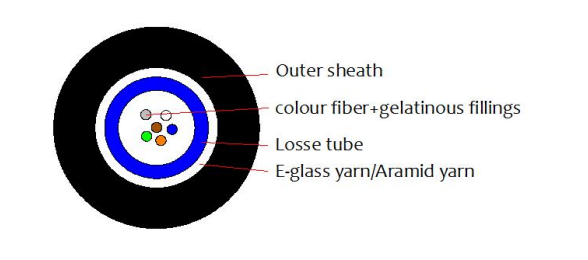

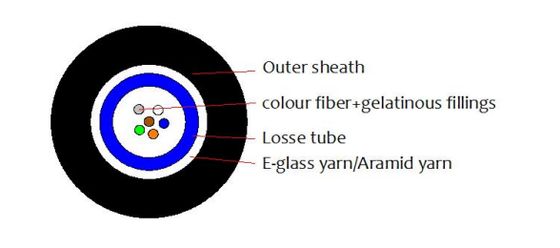

Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GJFXTKV 24C 8.0 SM G652D MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
