Outdoor Waterproof Optical Cable PE/AT 2-12F
جزئیات محصول:
| محل منبع: | چین ، شنژن |
| نام تجاری: | DF/OEM/Nuetral |
| گواهی: | CE/ROHS/REACH/ISO9001/ISO14001 |
| شماره مدل: | TK-PC-48F-SC-OS2-50M |
پرداخت:
| مقدار حداقل تعداد سفارش: | قابل مذاکره |
|---|---|
| قیمت: | negotiable denpend on QTY |
| جزئیات بسته بندی: | جعبه تاول + کارتن |
| زمان تحویل: | 5-9 روز کاری به QTY بستگی دارد |
| شرایط پرداخت: | Western Union، T/T، MoneyGram/Paypal |
| قابلیت ارائه: | 1000 قطعه در روز |
|
اطلاعات تکمیلی |
|||
| نام محصول: | کابل نوری ضد آب در فضای باز | شمارش فیبر: | 2-12 |
|---|---|---|---|
| قطر فیبر نوری (±1μm): | 125 میکرومتر | قطر پوشش فیبر نوری (±5μm): | 250μm |
| قطر زیر واحد (میلی متر): | 2-3 میلی متر | هسته تقویت شود: | نخ زاویه ای |
| مواد محافظ: | APL | غلاف مواد غلاف: | PE/AT |
| رنگ: | مشکی | دهانه (M): | 50 متر |
| دمای عمل: | -20 ℃ 70 ℃ | برند فیبر: | "کارنینگ"، "یو اف سی"، "او اف اس"، "دراک" |
| برجسته کردن: | Outdoor waterproof fiber optic cable,PE/AT fiber optic cable,2-12F fiber optic cable,PE/AT fiber optic cable,2-12F fiber optic cable |
||
توضیحات محصول
Outdoor Waterproof Optical Cable PE/AT 2-12F
GJA waterproof optical cable uses simplex cable (Φ900µm tight buffer fibre, aramid yarn as strength member) as subunit. A fibre reinforced plastic (FRP) or Steel wire locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. An aluminum polyethylene laminate is applied around the cable core. The cable is completed with a PE jacket.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor any purpose cable distribution
- Interconnect from outdoor to indoor for optical cable distribution equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Stranded strength member structure ensure the cable endure larger tensile strength
- The outer jacket material have many advantages such as anti-corrosion, anti-water and anti-ultraviolet radiation etc
- APL moisture barrier
- Meet various requirements of market and clients
Optical Parameter and Properties

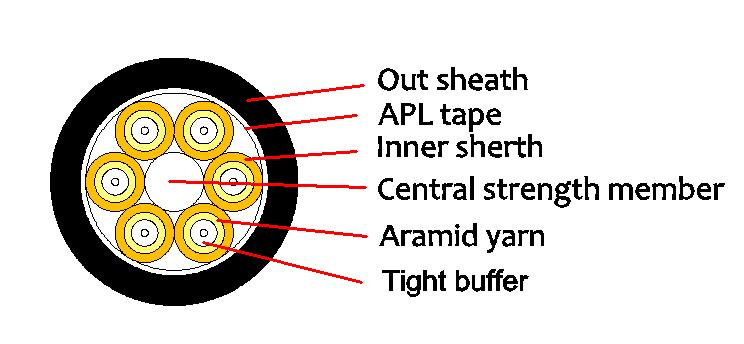

Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GJA 12C 14.8 SM G652D MM/YY 00000M
