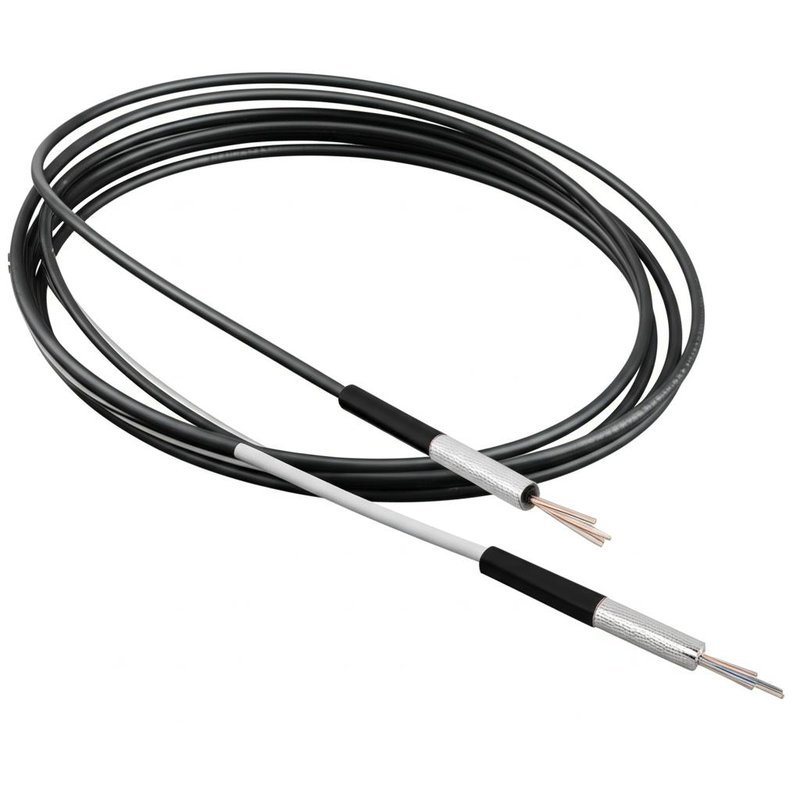

Indoor Flat Duplex Armored Optical Cable 2000M LSZH/PVC/PU
جزئیات محصول:
| محل منبع: | چین ، شنژن |
| نام تجاری: | DF/OEM/Nuetral |
| گواهی: | CE/ROHS/REACH/ISO9001/ISO14001 |
| شماره مدل: | TK-PC-48F-SC-OS2-50M |
پرداخت:
| مقدار حداقل تعداد سفارش: | قابل مذاکره |
|---|---|
| قیمت: | negotiable denpend on QTY |
| جزئیات بسته بندی: | جعبه تاول + کارتن |
| زمان تحویل: | 5-9 روز کاری به QTY بستگی دارد |
| شرایط پرداخت: | Western Union، T/T، MoneyGram/Paypal |
| قابلیت ارائه: | 1000 قطعه در روز |
|
اطلاعات تکمیلی |
|||
| نام محصول: | کابل نوری دوبلکس مسطح داخلی | قطر بیرونی (میلی متر): | 2-3.0 میلی متر |
|---|---|---|---|
| شمارش فیبر: | 2 | هسته تقویت شود: | نخ زاویه ای |
| مواد: | فولاد ضد زنگ | ماده ژاکت: | LSZH/PVC |
| رنگ: | سفید یا سفارشی | طول موج: | 1310 نانومتر، 1550 نانومتر |
| قطر (±1μm): | 125 میکرومتر | قطر پوشش (±5μm): | 250μm |
| دمای عمل: | -20 ℃ 70 ℃ | طول: | 2000 متر یا سفارشی |
| برند فیبر: | "کارنینگ"، "یو اف سی"، "او اف اس"، "دراک" | ||
| برجسته کردن: | indoor flat duplex armored fiber optic cable,LSZH PVC PU fiber optic cable,2000M armored optical cable,LSZH PVC PU fiber optic cable,2000M armored optical cable |
||
توضیحات محصول
Indoor Flat Duplex Armored Optical Cable 2000M LSZH/PVC/PU
Flat Twin Duplex Indoor armored Cable uses Φ600µm or Φ900µm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber is wrapped with a layer of steel wire, and aramid yarn as strength member units. Such unit is extruded with a layer of PVC or LSZH material as inner jacket. Then the cable is completed with a layer of flat PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket as out sheath.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Optical connections in optical communication equipment rooms and optical distribution frames
- Interconnection of instruments and communication equipment
Product Features
- Two single-fiber as basic unit, flat twin configuration
- Single-cable with Φ600µm or Φ900µm tight buffer, aramid yarn with steel armored
- Flexible or out sheath independent strength member
- Excellent mechanical and environmental performance
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |
Product Structure
Product Picture
