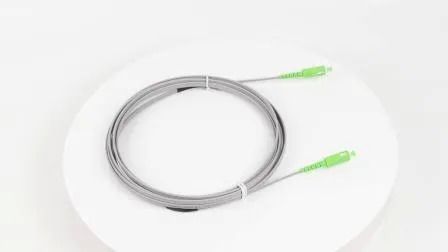

SC/LC/ST/FC Fiber Optical Patch Cord with 1000N Tensile Strength and -40~75 Operating Temperature for Reliable Connectivity
خلاصه محصول
SC/LC/ST/FC SM/MM Simplex/Duplex Fiber Optical Patch Cord A high-performance fiber optic patch cord designed for reliable signal routing between devices. The MPO connector enables high-density interconnection using MT Ferrule with Fiber Ribbon technology. Key Features Low insertion loss and high ...
Product Custom Attributes
ساخت اتصال:
SC-SC
شکل ماده:
سیم پیچ
فشار جانبی مجاز است:
100 (N/100mm) <1000 (N/100mm)
قدرت کششی مجاز:
1000N <10000N
هسته:
دو هسته ای
مواد غلاف:
PVC یا LSZH
هسته:
8،12،20،24
نوع فیبر:
OS1 ، OS2 ، OM1 ، OM2 ، OM3 ، OM4
رنگ ژاکت کابل:
زرد ، آبی ، سبز ، آبی ، قرمز ، مگنتا ، بژ
از دست دادن:
0.3 dB (معمولی)
از دست دادن:
≥45 dB
طول موج عملیاتی:
1310 ، 1510 نانومتر
قابلیت تعویض:
0.2 دسی بل
دمای عملیاتی:
-40 ~ 75 درجه سانتیگراد
قطر کابل:
φ3.0 ، φ2.0 ، φ0.9 میلی متر
برجسته کردن:
1000N Tensile Strength Fiber Optical Patch Cord,-40~75 Operating Temperature Fiber Optic Patch Cable,SC/LC/ST/FC Optical Patch Cord
,-40~75 Operating Temperature Fiber Optic Patch Cable
,SC/LC/ST/FC Optical Patch Cord
ویژگی های اساسی
گواهی:
RoHS, CE, ISO9001, VDE, CCC
املاک تجاری
مقدار حداقل تعداد سفارش:
10
قیمت:
0.6
توضیحات محصول
SC/LC/ST/FC SM/MM Simplex/Duplex Fiber Optical Patch Cord
A high-performance fiber optic patch cord designed for reliable signal routing between devices. The MPO connector enables high-density interconnection using MT Ferrule with Fiber Ribbon technology.
Key Features
- Low insertion loss and high return loss for optimal signal integrity
- MT based multi-fiber connector supporting up to 12 fibers
- Exceptional reliability and stability in operation
- Excellent repeatability and exchangeability
Applications
- Testing equipment and measurement systems
- FTTX and LAN network infrastructure
- Optical fiber CATV distribution
- Optical communication systems
- Telecommunication networks
Technical Specifications
| Parameter | Unit | FC, SC, LC/ Armoured | ST, MU | MT-RJ, MPO | E2000 |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 (PC), ≤0.2 (UPC), ≤0.3 (APC) | ≤0.2 (PC), ≤0.3 (UPC) | ≤0.2 (PC), ≤0.3 (APC) | ≤0.3 |
| Return loss | dB | ≥45 (PC), ≥50 (UPC), ≥60 (APC) | ≥30 (PC), ≥45 (UPC) | ≥50 (PC), ≥55 (UPC), ≥75 (APC) | ≥35 |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | ºC | -40~75 | |||
| Storage temperature | ºC | -45~85 | |||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | |||

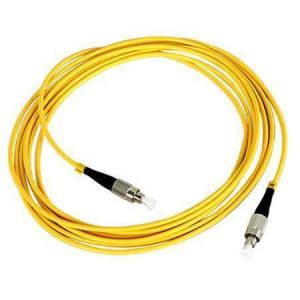

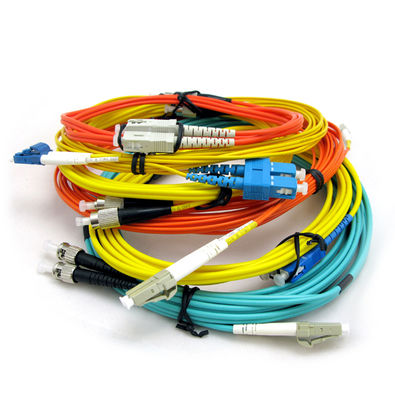

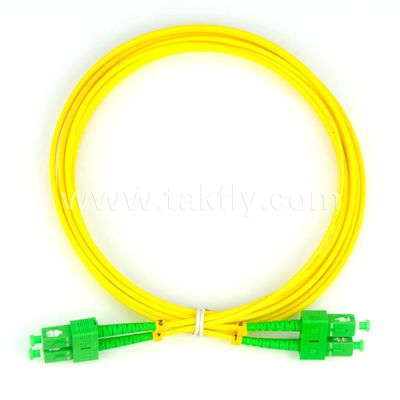

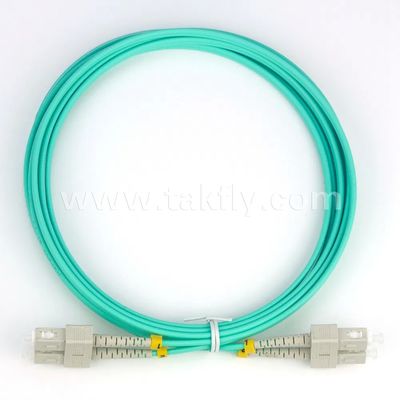

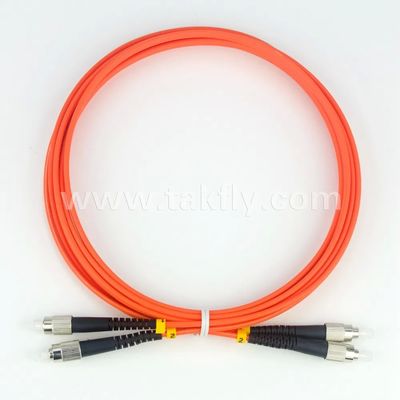

Product Images
