62.5/125 Duplex Fiber Optic Patch Cord LC to SC with 1m to 10m Length and 1 Year Warranty
جزئیات محصول:
| گواهی: | RoHS, CE |
پرداخت:
| مقدار حداقل تعداد سفارش: | 500 |
|---|---|
| قیمت: | 2.1 |
|
اطلاعات تکمیلی |
|||
| ساخت اتصال: | ال سی | شکل ماده: | سیم پیچ |
|---|---|---|---|
| فشار جانبی مجاز است: | > 1000 (N/100mm) | هسته: | دو هسته ای |
| مواد غلاف: | پی وی سی | اتصال: | SC/LC/FC/ST |
| نوع فیبر: | 0.9mm 2.0mm 3.0mm | طول فیبر: | 1m 3m 5m 10m یا سفارشی |
| از دست دادن: | <0.3dB | از دست دادن: | > 40 دسی بل |
| قطر اصلی: | 62.5 میکرون | قطر روکش: | 125 میکرون |
| دمای عملیاتی: | -20 ° C ~ +70 درجه سانتیگراد | دمای ذخیره سازی: | -40 درجه سانتی گراد ~ 80+ درجه سانتی گراد |
| قطر کابل: | 3.0 میلی متر، 2.0 میلی متر، 0.9 میلی متر | ||
| برجسته کردن: | 62.5/125 Fiber Optic Patch Cord,1m to 10m Duplex Fiber Optic Cable,1 Year Warranty LC to SC Patch Cord,1m to 10m Duplex Fiber Optic Cable,1 Year Warranty LC to SC Patch Cord |
||
توضیحات محصول

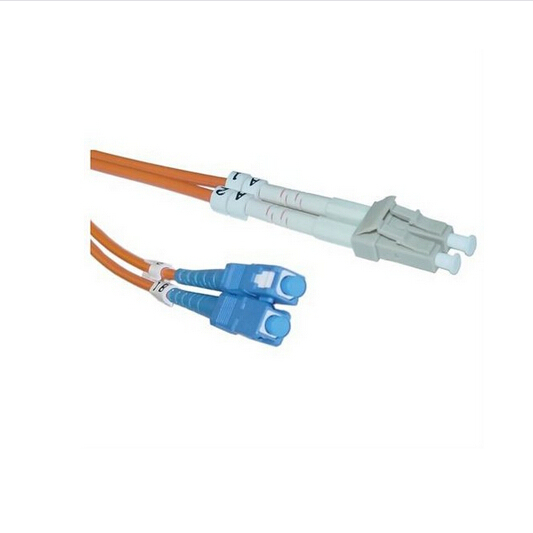

LC to SC MM 62.5/125 5meter Duplex Fiber Optic Patch Cord
This 5 meter (approximately 16 feet) fiber optic cable features an LC (Lucent Connector) on one end and an SC (Subscriber Connector) on the other. Designed for multimode fiber (62.5 micron core) applications, it efficiently transmits data across shorter distances at LAN speeds. The duplex configuration (two fibers) enables synchronous communication between devices, with a cladding diameter of 125 microns.
Note: Not suitable for Home Theater applications.
- Available lengths: 1m, 3m, 5m, 10m
- 2.2mm or 3mm loose tube
- UPC or APC end face options
Ideal for equipment jumper cables, cross connects, and work area connections. Manufactured using OFNR riser grade cable and 100% factory tested to ensure performance meets TIA/EIA-568-B-3 standards. Available in various connector combinations (ST/ST, SC/SC, FC/FC, LC/LC) and hybrid configurations (ST/SC) in both multimode (62.5/125µ and 50/125µ) and single mode cable types, with duplex and simplex versions.
- Exceptional durability and exchangeability
- High temperature stability
- Low insertion loss and back reflection loss
- Superior quality standard PC/UPC/APC polishing
- Compliant with Telcordia GR-326-CORE, TIA/EIA, and IEC standards
- RoHS compliant green production
- High stability in various environments
- Custom orders available
| Descriptions | SM(PC) | SM(UPC) | SM(APC) | MM(PC) |
|---|---|---|---|---|
| Insertion loss | <0.3dB | ≤0.2dB | <0.3dB | <0.3dB |
| Return loss | ≥50dB | ≥50dB | ≥65dB | ≥35dB |
| Repeatability | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Durability | <0.1dB typical change, 1000 mating | |||
| Interchangeability | ≤0.2dB | |||
| Vibration | ≤0.2dB | |||
| Operating Temperature | -20°C ~ +70°C | |||
| Storage Temperature | -40°C ~ +80°C | |||
| Cable Diameter | 3.0mm, 2.0mm, 0.9mm | |||
