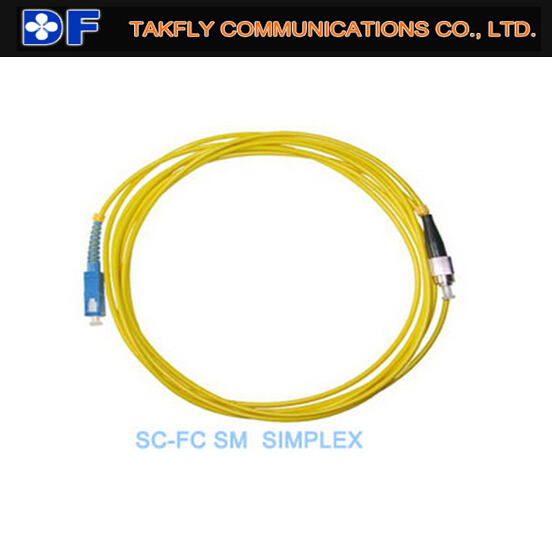

SC to FC Simplex Single Mode Fiber Optic Patch Cord with PVC Sheath and Customized Length Options
خلاصه محصول
SC to FC SM Simplex Fiber Optic Patch Cord High-performance SC to FC single mode simplex fiber optic patch cord designed for equipment jumper cables, cross connects, and work area connections. Manufactured using OFNR riser grade cable and 100% factory tested to ensure performance to TIA/EIA-568-B-3 ...
Product Custom Attributes
ساخت اتصال:
FC-SC
فشار جانبی مجاز است:
> 1000 (N/100mm)
قدرت کششی مجاز:
1000N <10000N
هسته:
یک هسته
مواد غلاف:
پی وی سی
نوع فیبر:
0.9mm 2.0mm 3.0mm
طول فیبر:
1m 3m 5m 10m یا سفارشی
اتصال:
SC به FC
از دست دادن:
<0.3dB
از دست دادن:
≥50db
تکرارپذیری:
≤0.1
دوام:
<0.1db تغییر معمولی ، 1000 جفت گیری
قابلیت تعویض:
0.2db
دمای عملیاتی:
-20 ° C ~ +70 درجه سانتیگراد
دمای ذخیره سازی:
-40 درجه سانتی گراد ~ 80+ درجه سانتی گراد
برجسته کردن:
Simplex Fiber Optic Patch Cord,PVC Sheath Fiber Optic Cable,Customized Length Optical Patch Cord
,PVC Sheath Fiber Optic Cable
,Customized Length Optical Patch Cord
ویژگی های اساسی
گواهی:
RoHS, CE
املاک تجاری
مقدار حداقل تعداد سفارش:
100
قیمت:
0.75
توضیحات محصول
SC to FC SM Simplex Fiber Optic Patch Cord
High-performance SC to FC single mode simplex fiber optic patch cord designed for equipment jumper cables, cross connects, and work area connections. Manufactured using OFNR riser grade cable and 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
Available Specifications
- Length options: 1.1m, 3m, 5m, 10m
- Cable diameter: 2.0mm or 3.0mm loose tube
- End face options: UPC or APC polish
Key Features
- Excellent durability and exchangeability
- High temperature stability
- Low insertion loss and back reflection loss
- Superior quality standard PC/UPC/APC polishing
- Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
- RoHS compliant, green production
- High stability in various environments
- Custom orders available
Technical Specifications
| Parameter | SM(PC) | SM(UPC) | SM(APC) | MM(PC) |
|---|---|---|---|---|
| Insertion loss | <0.3dB | ≤0.2dB | <0.3dB | <0.3dB |
| Return loss | ≥50dB | ≥50dB | ≥65dB | ≥35dB |
| Repeatability | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Durability | <0.1dB typical change, 1000 mating | |||
| Interchangeability | ≤0.2dB | |||
| Vibration | ≤0.2dB | |||
| Operating Temperature | -20°C ~ +70°C | |||
| Storage Temperature | -40°C ~ +80°C | |||
| Cable Diameter | 3.0mm, 2.0mm, 0.9mm | |||
All patch cords are available in both multimode (62.5/125µ M and 50/125µ M) and single mode cable-types, in duplex and simplex versions.
