MPO/MTP Patchcord Fanout Uniboot LC Multimode OM4 Breakout Fiber Optic Cable for Data Center Cabling AI Telecom
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OEM |
| گواهی: | ISO, CE RoHS |
| شماره مدل: | MPO/MTP-MM-OM4-Uni LC |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 |
|---|---|
| قیمت: | USD12-40/pc |
| جزئیات بسته بندی: | کیسه PE خود آب بندی + کارتن |
| زمان تحویل: | 5-8 روز کاری |
| شرایط پرداخت: | T/T، وسترن یونیون |
| قابلیت ارائه: | 50000 عدد در ماه |
|
اطلاعات تکمیلی |
|||
| مواد: | LSZH، OFNP | نوع فیبر: | میلی متر |
|---|---|---|---|
| رنگ: | رز قرمز | قابل تنظیم: | بله |
| برجسته کردن: | MPO MTP patchcord uniboot LC,OM4 breakout fiber optic cable,data center cabling fiber optic |
||
توضیحات محصول

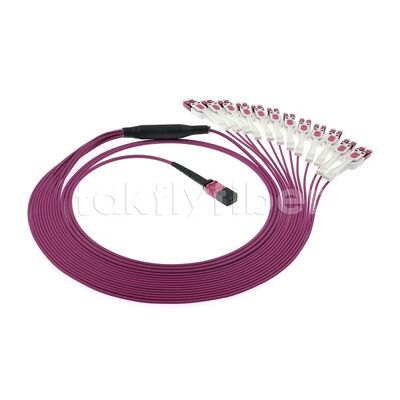

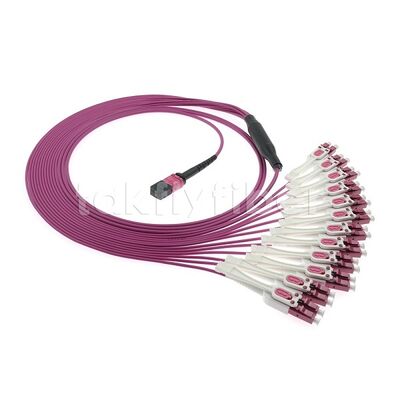

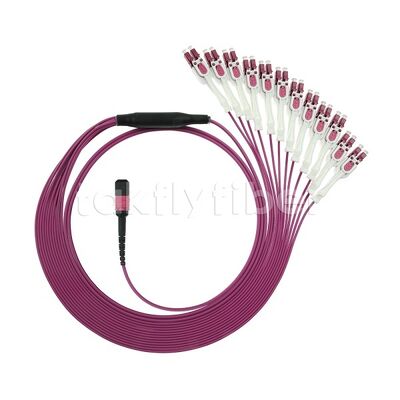

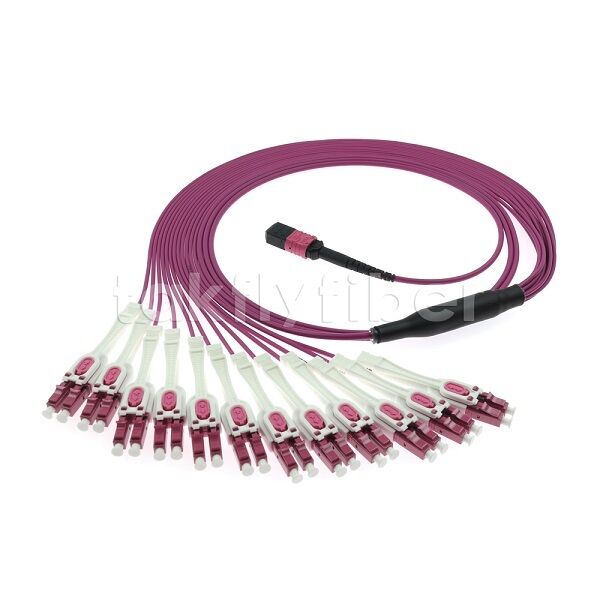

MPO/MTP Patchcord Fanout Uniboot LC Multimode OM4 Breakout Fiber Optic Cable
MPO/MTP breakout patch cords are engineered for data center cabling and AI telecom applications, delivering efficient optical connectivity in high-density environments.
Product Overview
MPO/MTP breakout patch cords consist of four main components: main cable, breakout cable, branching device, and connector. The multi-core main cable simplifies cabling management and prevents tangling, making it ideal for high-density optical cabling environments.
Key Features
- Changeable polarity with simple operation
- LC uniboot connector design saves 50% cabling space
- Compact and space-saving for high-density environments
- Tool-free outer housing opening
- High-quality ferrule with professional polishing technology
- Precise optical endface matching for stable transmission
- 100% tested for quality assurance
- Multiple types available with customization options
Applications
TAKFLY MPO/MTP breakout patch cords feature stable transmission and high reliability, making them ideal for optical network scenarios including data centers and various optical cabling applications.
Available Types
TAKFLY provides a full range of MPO/MTP-LC breakout patch cords with customizable transmission mode, cable type, and connector type options.
Technical Specifications
| Performance | Type | Multimode | Singlemode |
|---|---|---|---|
| Insertion Loss (IL) | MPO | Single Max: 0.35dB (L) Single Max: 0.60dB (G) |
Single Max: 0.35dB (L) Single Max: 0.75dB (G) |
| LC | Max: 0.10dB (L) Max: 0.15dB (G) |
Max: 0.30dB | |
| Return Loss (RL) | MPO | >20dB | >60dB (8 degree Angle Polish) |
| LC | >30dB | >50dB(UPC), >60dB(APC) | |
| Mechanical | MPO | <0.2dB, 200 times insertion | |
| LC | <0.2dB, 500 times insertion | ||
| Environmental | Working Temp | -20°C to +60°C | |
