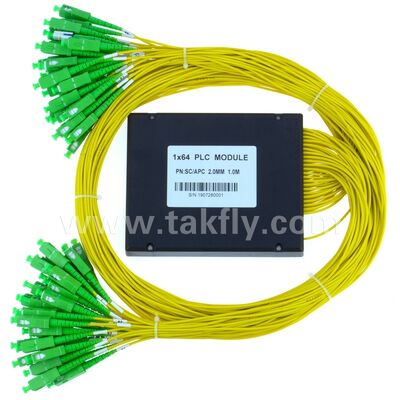

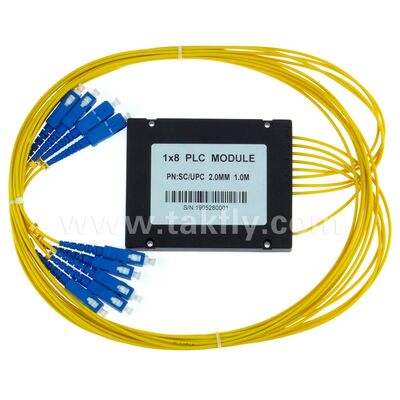

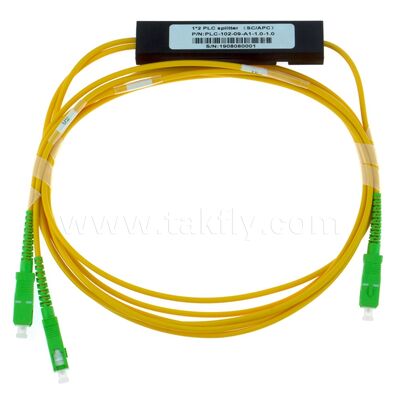

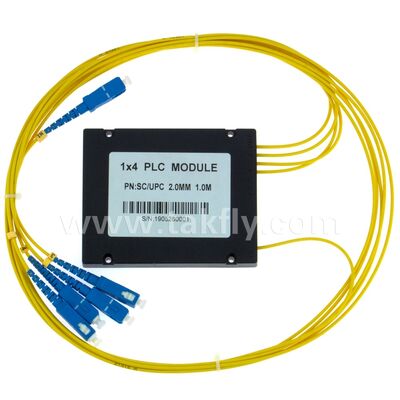

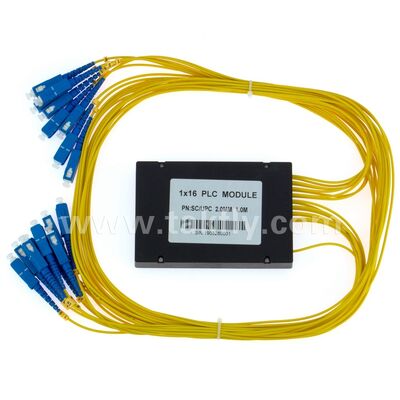

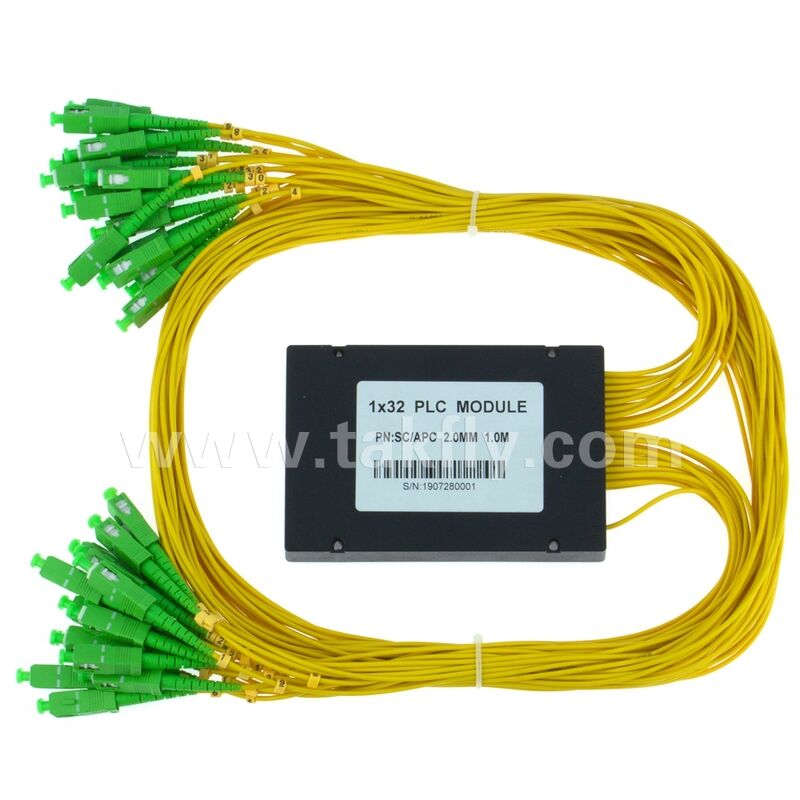

Fiber Optic PLC Splitter ABS box 1xN SC APC/UPC for Fttx Telecom Data Center
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OEM |
| گواهی: | ISO, CE RoHS |
| شماره مدل: | DF-PLC-ABS-1xN |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 |
|---|---|
| قیمت: | USD2-32/pc |
| جزئیات بسته بندی: | کارتن |
| زمان تحویل: | 5-8 روز کاری |
| شرایط پرداخت: | T/T، وسترن یونیون |
| قابلیت ارائه: | 50000 عدد در ماه |
|
اطلاعات تکمیلی |
|||
| سفارشی سازی: | بله | ||
|---|---|---|---|
| برجسته کردن: | Fiber Optic PLC Splitter ABS box,Fiber Optic PLC Splitter SC APC,Fiber Optic PLC Splitter Fttx Telecom,Fiber Optic PLC Splitter SC APC,Fiber Optic PLC Splitter Fttx Telecom |
||
توضیحات محصول
PLC splitter is an optical power equalization product based on quartz substrate material and planar optical waveguide technology. It is mainly used for optical signal coupling and distribution in passive optical network (PON) systems and is one of the most important passive components in optical networks.
TAKFLY provides PLC optical splitters in multiple configurations including 1xN, 2xN, and others to meet diverse customer requirements.
Available with high quality ferrule, professional polishing technology, and precise optical endface matching to achieve stable transmission and efficient connection.
TAKFLY's PLC optical splitter Mini steel tube delivers excellent performance parameters. The PLC optical splitter is insensitive to wavelength and supports full-band signal transmission from 1260 to 1650 nm.
PLC optical splitters offer wavelength insensitivity, high stability, and uniform splitting characteristics. They are among the most important passive devices in optical networks and are widely used in metropolitan area networks (MAN), local area networks (LAN), FTTx, and other applications.
TAKFLY provides a full range of PLC optical splitter ABS box configurations with customization options available.
| Item | Parameter |
|---|---|
| Type (1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max. Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max. Uniformity (dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min. Return Loss (dB) | 55 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type (2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max. Insertion Loss (dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max. Uniformity (dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min. Return Loss (dB) | 55 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1, G657A2 and G652D |
| Operating Wavelength (nm) | 1260~1650 |
| Max. Temperature Stability (dB) | 0.5 (Typical 0.3) |
| Operating Temperature (℃) | -40 ~ +85 |
| Storage Temperature (℃) | -40 ~ +85 |
