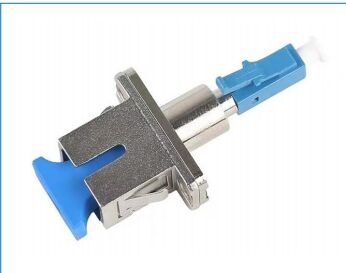

LC(male)-SC(female) Adapter SM/MM Low IL 0.3dB High Performance
جزئیات محصول:
| محل منبع: | چین ، شنژن |
| نام تجاری: | DF/OEM/Nuetral |
| گواهی: | CE/ROHS/REACH/ISO9001/ISO14001 |
| شماره مدل: | آداپتور LC(نر)-SC(مونث). |
پرداخت:
| مقدار حداقل تعداد سفارش: | قابل مذاکره |
|---|---|
| قیمت: | $ 4.7/per |
| جزئیات بسته بندی: | جعبه تاول + کارتن |
| زمان تحویل: | 5-9 روز کاری به QTY بستگی دارد |
| شرایط پرداخت: | Western Union ، T/T ، MoneyGram/PayPal |
| قابلیت ارائه: | 1000 عدد در روز |
|
اطلاعات تکمیلی |
|||
| نام محصول: | آداپتور LC(نر)-SC(مونث) SM/MM کم IL 0.3dB با کارایی بالا | از دست دادن: | ＜0.2dB |
|---|---|---|---|
| ضرر برگشتی: | SM≥45dB | تکرارپذیری: | ＜0.2dB |
| انواع فیبر نوری: | SM/MM | محدوده دمای ذخیره سازی (℃): | -40 ℃ - +75 ℃ |
| گواهی: | CE/ROHS/REACH | ||
| برجسته کردن: | LC to SC fiber optic adapter,low insertion loss fiber adapter,SM MM fiber optic connector,low insertion loss fiber adapter,SM MM fiber optic connector |
||
توضیحات محصول
LC(male)-SC(female) Adapter SM/MM Low IL 0.3dB High Performance
Male-female type switching adapters convert one type of fiber optic connector (male) to another type of fiber optic connector interface (female). These adapters feature small size, light stability, and ease of use, making them widely applicable in fiber optic equipment, instrumentation testing, and engineering rescue construction.
- Telecom, Mobile & Unicom, Radio and television
- Optical data transmission connection
- Fiber optic equipment testing and engineering rescue construction
- Low insertion loss, high return loss
- Good consistency & repeatability
- Small size, less space
- Easy to use, easy to operate
| Parameter | Specification |
|---|---|
| Return Loss | SM≥45dB |
| Insertion Loss(dB) | ≤ 0.50 |
| Repeatability(dB) | 0.2dB Max |
| Fiber Type | SM/MM |
| Storage Temp Range(℃) | -40℃~+75℃ |
Male-female type switch insertion loss adapters with embedded fiber and fiber optic ferrule adapter sleeve technology. Customization available according to needs: male UPC or APC (female only accepts UPC). Fiber selection includes SM-9/125um single-mode fiber or MM-62.5/125um or OM2-50/125um multimode fiber.
- Over 25 years of manufacturing experience in fiber optic products
- More than 500 assembly workers with 5+ years of experience
- 10+ R&D Engineers dedicated to product innovation
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding available
- Regular participation in major industry exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
- Raw material incoming inspection with spot checks before production
- Comprehensive inspection after each manufacturing process
- Thorough inspection of work-in-progress
- Complete finished product inspection before packaging
- Final spot checks before shipping
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Flexible packaging options: Plastic bags, cartons, and pallets available according to customer requirements
