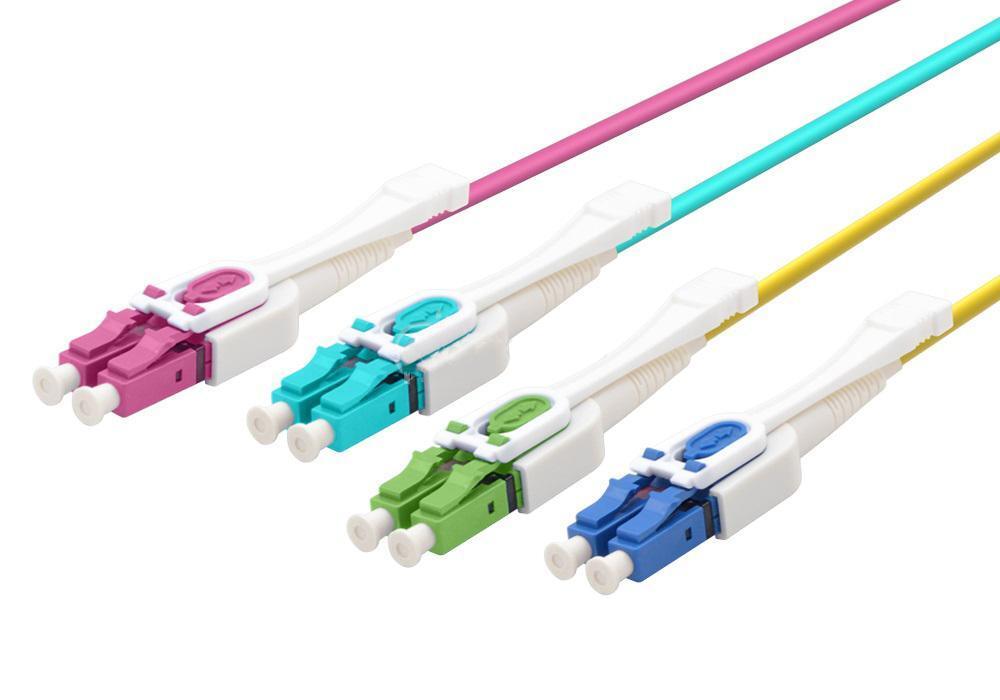

LC-LC Polarity switchable Uniboot Patch cord
جزئیات محصول:
| محل منبع: | شنژن، چین |
| نام تجاری: | Takfly/OEM |
| گواهی: | CE, ROHS, REACH |
| شماره مدل: | اتصال LC-LC Uniboot |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 عدد |
|---|---|
| قیمت: | Can be negotiated |
| جزئیات بسته بندی: | اسپون + جعبه + کارتن |
| زمان تحویل: | 3-7 روز کاری |
| شرایط پرداخت: | L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام |
| قابلیت ارائه: | 50000 عدد در ماه |
|
اطلاعات تکمیلی |
|||
| نام: | اتصال دهنده فیبر نوری | تایپ کنید: | اتصال LC-LC Uniboot |
|---|---|---|---|
| نوع چهره پایانی: | UPC | حالت: | SM (G652، G655، G657)، MM (OM1-OM5) |
| از دست دادن درج: | 0.3db ≤ | ضرر برگشتی: | UPC SM ≥ 50dB , UPC MM ≥ 35dB |
| دمای عملیاتی: | -20 ℃ ~+60 ℃ | دمای ذخیره سازی: | -20 ℃ ~+60 ℃ |
| فرول: | 1.25 میلی متر (CCTC). | ||
| برجسته کردن: | LC-LC uniboot fiber patch cord,polarity switchable fiber optic cable,LC-LC uniboot patch cord with warranty,polarity switchable fiber optic cable,LC-LC uniboot patch cord with warranty |
||
توضیحات محصول
LC-LC Polarity Switchable Uniboot Patch Cord
High-performance fiber optic patch cord featuring polarity switchable uniboot design for efficient cable management and reliable connectivity.
Technical Features
- Low insertion loss and high reflection loss
- Polarity switchable
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Technical Parameters
| Parameter | Specification |
|---|---|
| End face type | UPC |
| Fiber type | SM (G652,G655,G657); MM (OM1-OM5) |
| Cable Diameter | 2.0/3.0mm or customized |
| Insertion loss | ≤ 0.3dB |
| Return loss | UPC SM ≥ 50dB, UPC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Strength Member | Kevlar |
| Tensile strength | >60N |
| Ferrule | 1.25mm (CCTC) |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -20℃~60℃ |
| Outer Sheath Material | PVC, LSZH |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Relevant Solutions
Easy operating connector for direct use in ONU applications, with fasten strength exceeding 5 kg. Widely used in FTTH projects for network revolution, reducing socket and adapter requirements to save project costs.
Compatible with 86 standard sockets and adapters, enabling connections between drop cables and patch cords. The 86 standard socket provides complete protection through its unique design.
Technical Support and Services
- Assist customers in finding the right fiber optic connector for their applications
- Provide technical consultation and advice on fiber optic connector installation
- Offer after-sale service and maintenance for our fiber optic connectors
- Ensure the highest quality of fiber optic connector products
- Provide 24/7 customer service
- Provide warranty services for our fiber optic connectors
Packaging and Shipping
- Packaged in cardboard box with foam padding for protection
- Shipped via reliable carrier
- All orders shipped within 24 hours of payment
Frequently Asked Questions
What is the Brand Name of this Fiber Optic Connector?
The Brand Name is Takfly/OEM.
What is the Model Number of this Fiber Optic Connector?
The Model Number is Fiber Optic Fast Connector.
Where is this product made?
This product is made in Shenzhen, China.
What is the purpose of this Fiber Optic Connector?
This Fiber Optic Connector is used to connect fiber optic cables quickly and easily.
What type of fiber optic cables can this Connector be used with?
This Connector can be used with single mode and multimode fiber optic cables.
