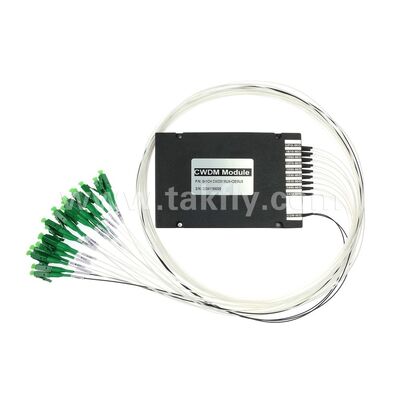

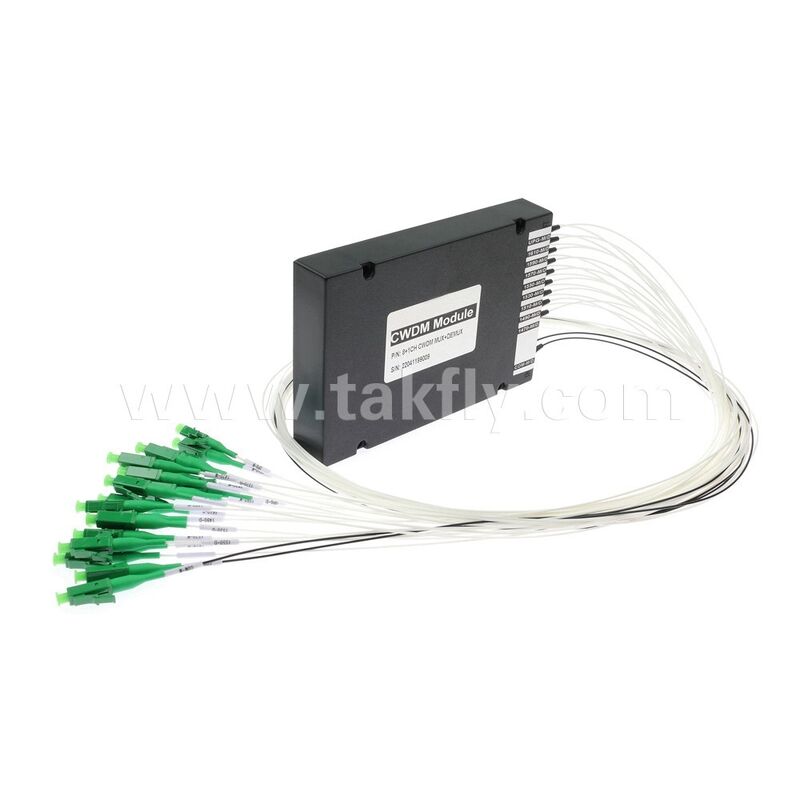

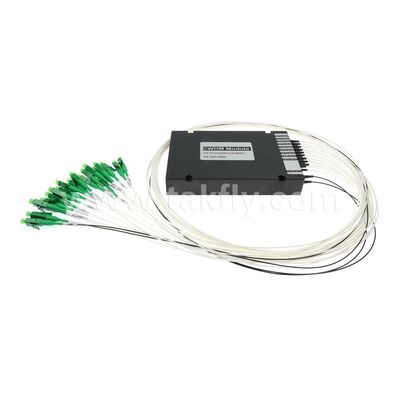

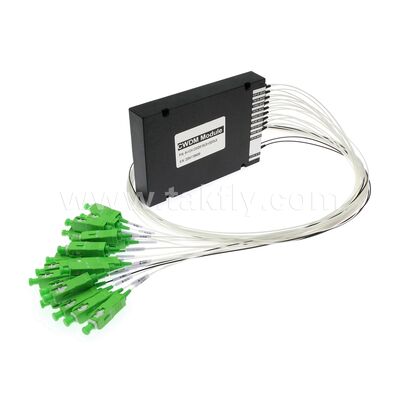

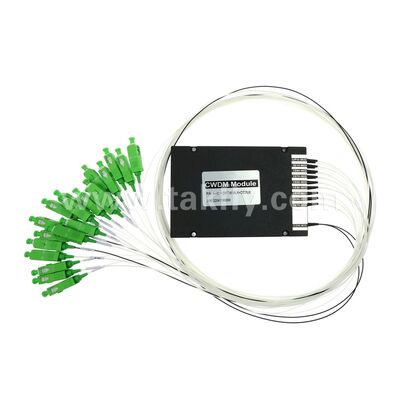

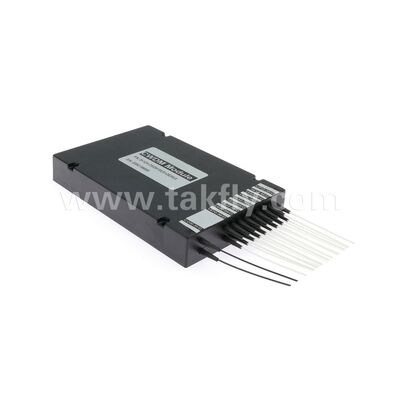

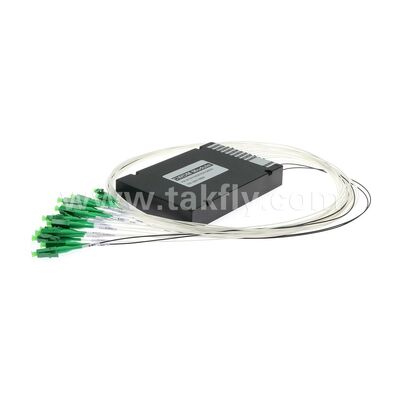

Fiber Optic CWDM 8+1Channel MUX & DEMUX ABS Module for Data Center FTTX
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OEM |
| گواهی: | ISO, CE RoHS |
| شماره مدل: | DF-8+1 ABS CWDM |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 |
|---|---|
| قیمت: | USD38-48/pc |
| جزئیات بسته بندی: | کارتن |
| زمان تحویل: | 5-8 روز کاری |
| شرایط پرداخت: | T/T، وسترن یونیون |
| قابلیت ارائه: | 50000 عدد در ماه |
|
اطلاعات تکمیلی |
|||
| رابط: | تعیین شود | ||
|---|---|---|---|
| برجسته کردن: | Fiber Optic CWDM MUX DEMUX module,8+1 Channel CWDM ABS module,Data Center FTTX WDM Mux Demux,8+1 Channel CWDM ABS module,Data Center FTTX WDM Mux Demux |
||
توضیحات محصول
Fiber Optic CWDM 8+1 Channel MUX & DEMUX ABS Module for Data Center FTTX
8+1 Channel CWDM MUX & DEMUX ABS Module
Takfly's CWDM Mux & Demux ABS module utilizes wavelength division multiplexing technology based on TFF (thin film filter), offering multiple wavelength options. It multiplexes optical signals of different wavelengths into a single fiber for transmission and demultiplexes them into separate wavelength signals at the receiver end.
CWDM has established an important position in the access layer of Metropolitan Area Networks due to its wide band capabilities and low system equipment requirements.
Key Features
- Low Insertion Loss
- Wide Pass Band
- High Channel Isolation
- High Stability and Reliability
- Epoxy-free on Optical Path
Takfly provides multiple wavelengths and single or dual fiber transmission CWDM MUX+DEMUX options with customization capabilities.
Technical Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Channel Count | Ch | 8+1 |
| Channel Center Wavelength | nm | 1470/1490/1510/1530/1550/1570/1590/1610/UPGRADE 1270-1350 |
| Channel Passband | nm | ±7.5 |
| Insertion Loss | dB | <2.2 |
| Isolation Adjacent Channel | dB | 30 |
| Isolation Non-Adjacent Channel | dB | 40 |
| Passband Ripple | dB | 0.3 |
| Polarization Dependent Loss | dB | 0.1 |
| Directivity | dB | 55 |
| Return Loss | dB | 50 |
| Polarization Mode Dispersion | ps | 0.1 |
| Power Handling | mW | 500 |
| Pigtail and Connector Type | COM | 0.9/mm black loose tube with connector |
| Other ports | 0.9/mm white loose tube with connector | |
| Fiber Type | SMF-28e | |
| Fiber Length | m | ≥1 |
| Operating Temperature | ℃ | -10 ~ 70 |
| Storage Temperature | ℃ | -40 ~ 85 |
| Package Dimension | mm | ABS Module |
