Takfly Invisible Self-Adhesive FTTH Drop Cable with G657A Fiber and 2.2x3.0mm Diameter SCAPC Patchcord
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | DF/OEM/Nuetral |
| گواهی: | CE/ROHS/REACH/ISO9001/ISO14001 |
| شماره مدل: | TK-SI-PC--SA-SA-2.0x3.0-PVC-XXX |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 عدد |
|---|---|
| قیمت: | US$0.01~3.99/PC |
| جزئیات بسته بندی: | بسته بندی استاندارد صادراتی |
| زمان تحویل: | 5-9 روز کاری به QTY بستگی دارد |
| شرایط پرداخت: | Western Union ، T/T ، MoneyGram/PayPal |
| قابلیت ارائه: | 5000 قطعه در روز |
|
اطلاعات تکمیلی |
|||
| نام محصول: | تکفلای ODM طرح جدید کاپشن پی وی سی چسبنده نامرئی FTTH کابل قطره ای SCAPC-SCAPC SM G657A | از دست دادن intertion: | ≤0.3dB |
|---|---|---|---|
| ضرر برگشتی: | UPC SM ≥ 50dB | نوع فیبر: | OS2، G652D، G657A1، G657A2، G657B3 |
| قطر: | 2.2x3.0±0.2mm | نوع رابط: | APC |
| جنس ژاکت: | پی وی سی | رنگ: | شفاف |
| طول موج: | 1310nm ، 1550nm | طول: | 3 متر یا سفارشی |
| دمای عملیات: | -20℃~70℃ | قطر فیبر: | 9/125 |
| درجه: | درجه مخابرات | گواهی: | CE/ROHS/REACH |
| ظرفیت تولید: | 10000 عدد در روز | ||
| برجسته کردن: | Invisible Self-Adhesive FTTH Drop Cable,G657A Fiber SCAPC Patchcord,2.2x3.0mm Diameter Fiber Optic Patchcord,G657A Fiber SCAPC Patchcord,2.2x3.0mm Diameter Fiber Optic Patchcord |
||
توضیحات محصول

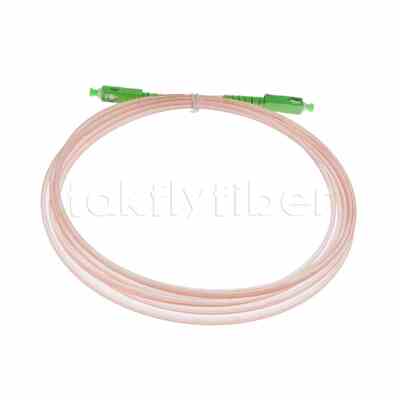

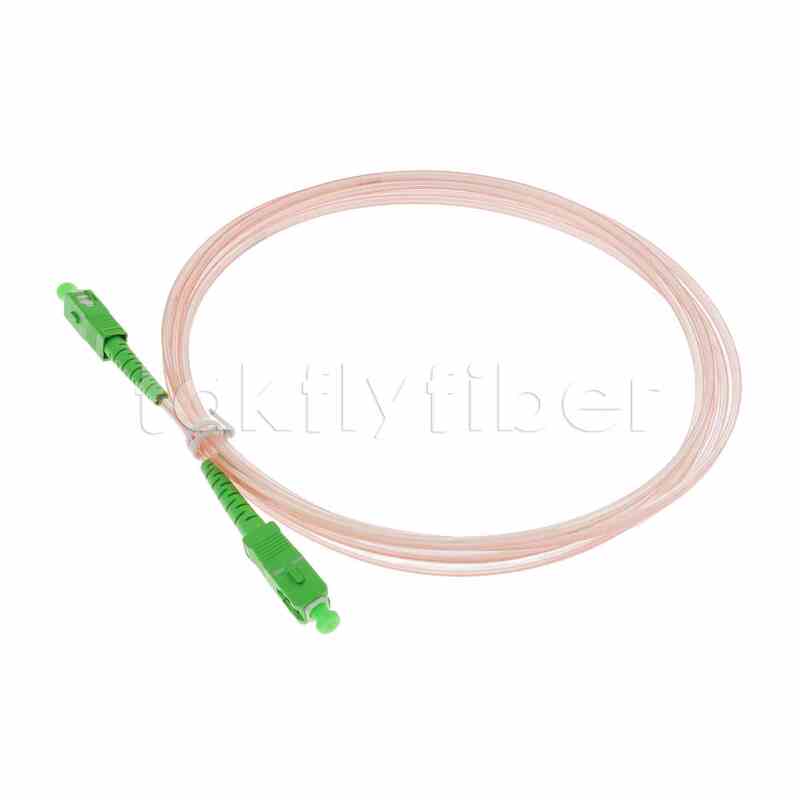

Takfly ODM New Design Invisible Self-Adhesive FTTH Drop Cable Patchcord
Takfly ODM New Design Invisible Self-Adhesive FTTH drop cable patchcord SCAPC-SCAPC SM G657A PVC Jacket features a 2.0×3.0mm LSZH cable with SC/UPC-SC/UPC connectors, designed for high-performance, low-loss single-mode fiber connections. These pre-terminated, rugged assemblies offer 1 fiber count and undergo 100% factory inspection.
Product Specifications
Fiber Optic Attributes
- Mode field diameter: 8.6μm±0.4μm at 1310nm
- Cladding diameter: 125.0μm±0.7μm
- Coating diameter: 245μm±10μm
- Coating-cladding concentricity error: ≤12.5μm
- Cut-off wavelength: ≤1260nm
- Attenuation coefficient: 1310≤0.4dB 1550≤0.3dB
FTTH Cable Information
- Number of fiber: 1 core
- Fiber type: G657A1/SM G657A2/G657B3
- Strength member material: FRP
- Diameter: 0.5mm×2
Outer Sheath
- Material: LSZH Black
- Cable size: 2.0×3.0mm
Connector Test Specifications
| Item | Specifications |
|---|---|
| Type | SC/APC(1310) |
| Insertion Loss | ≤0.3 dB + 0.36 dB/km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/km *L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability(1000 Mating) | 0.2dB Max. increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 70N |
Fiber Parameters
| Optical fiber type | Test wavelength | Attenuation | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius (mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | ... | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | ... | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | ... | ... | 7.5 |
| G657B3 | 1310/1550nm | 0.36/0.22 | ... | ... | 5 |

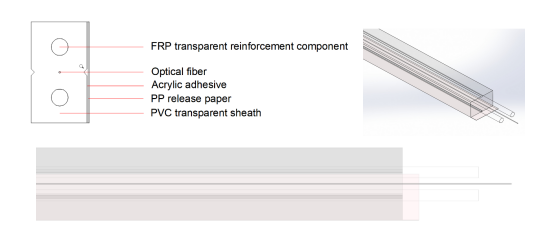

Cable Structure
| Item | Contents | Value |
|---|---|---|
| Optical Fiber | Fiber Count | 1 or 2 |
| Fiber Type | SM G657A2 or SM G657AB3 | |
| Fiber Diameter | 0.25mm | |
| Strength Member | Material | FRP |
| Diameter | 2 × 0.5mm | |
| Outer Sheath Cable | Material | PVC |
| Thickness | 0.4mm | |
| Diameter | 2.0×3.0mm | |
| Double-sided Tape | Glue | Acrylic Acid |
| Release paper | PP | |
| Outer Diameter | Outer Sheath with Double-sided tape | 2.2×3.0±0.2mm |
Mechanical and Environmental Characteristics
| Cable type | Diameter (mm) | Weight (Kg/km) | Max. Tension (N) | Crush Resistance (N/100mm) | Min. Bending Radius (mm) | Storage temperature (℃) |
|---|---|---|---|---|---|---|
| GJXFH-1~2 | 2.2×3.0±0.2mm | 9.5 | 40/80 | 500/1000 | 20D/10D | -20~+70 |
Applications
- FTTR (Fiber to the Room): Enables seamless fiber connectivity in residential or commercial indoor environments
- Indoor Optical Networks: Ideal for high-speed data transmission with minimal visibility impact
- Telecom Systems: Reliable connectivity for LAN, WAN, and metro networks
- Smart Homes: Supports modern home networks requiring aesthetically pleasing and high-performance cabling
- Enterprise Networking: Suitable for discreet indoor installations in offices and business centers
Key Features
- Invisible Fiber Design: 2.2×3.0±0.2mm cable with transparent finish blends into surroundings for discreet indoor use
- High-Performance SC/SCA Connectors: Ensures low insertion loss and high return loss for stable signal transmission
- Compact and Flexible: Easy to route around corners, walls, and ceilings without affecting performance
- Low Bend Sensitivity: Built with G.657A2/B3 fiber for excellent bend performance and durability
With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales. We provide professional guidance to help you save time and money while increasing your sales.
