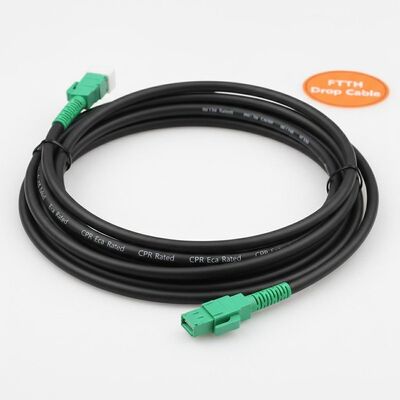

SC APC Fiber Optic Patchcord with G657A2 Fiber TPU Black Jacket and CPR Eca Rated for FTTH Drop Cable
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | DF/OEM/Nuetral |
| گواهی: | CE/ROHS/REACH/ISO9001/ISO14001 |
| شماره مدل: | TK-PC-4.5DS-5M-SCA-LCA-LZB |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 عدد |
|---|---|
| قیمت: | US$0.01~4.69/PC |
| جزئیات بسته بندی: | بسته بندی استاندارد صادراتی |
| زمان تحویل: | 5-9 روز کاری به QTY بستگی دارد |
| شرایط پرداخت: | Western Union ، T/T ، MoneyGram/PayPal |
| قابلیت ارائه: | 10000 عدد در روز |
|
اطلاعات تکمیلی |
|||
| نام محصول: | ژاکت مشکی LSZH SM G657AB3 LSZH فیبر نوری 4.5 میلی متری دارای گواهی درجه CPR Dca Telecom | از دست دادن intertion: | ≤0.3dB |
|---|---|---|---|
| ضرر برگشتی: | APC SM ≥ 60dB | نوع فیبر: | OS2، G652D، G657A1، G657A2، G657B3 |
| قطر: | 4.5 میلی متر | نوع رابط: | APC |
| جنس ژاکت: | LSZH | رنگ: | مشکی |
| طول موج: | 1310nm ، 1550nm | طول: | 5 متر یا سفارشی |
| دمای عملیات: | -20℃~70℃ | قطر فیبر: | 9/125 |
| درجه: | درجه مخابرات | گواهی: | CE/ROHS/REACH |
| ظرفیت تولید: | 10000 عدد در روز | ||
| برجسته کردن: | G657A2 Fiber Optic Patchcord,TPU Black Jacket FTTH Drop Cable,CPR Eca Rated SC APC Patchcord,TPU Black Jacket FTTH Drop Cable,CPR Eca Rated SC APC Patchcord |
||
توضیحات محصول

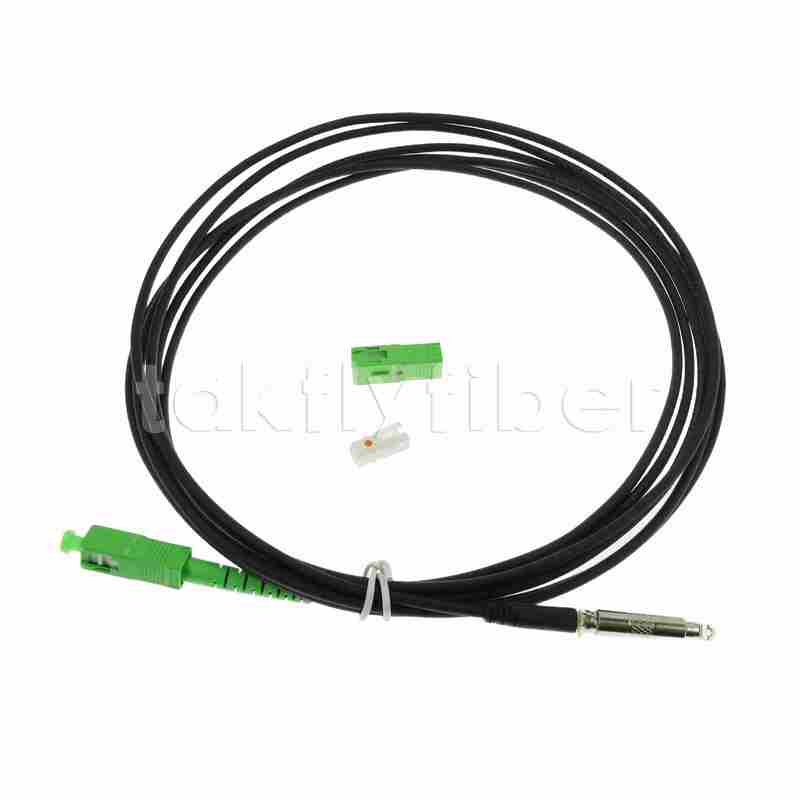

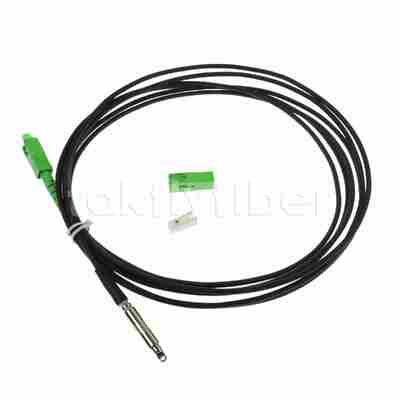

Pro-connectorized FTTH patch cord assembly with Takfly's proprietary Bullet SC APC connector and G657A2 Simplex TPU high tensile strength cable.
This Bullet SC APC connector can be threaded through pipes with inner diameter >6mm, making it ideal as the final cable in FTTH projects. It connects between FAP boxes, FTB, FDB, face plates, and ONU/ONT equipment with easy accessibility and simple installation.
| Parameter | Specification |
|---|---|
| End face type | PC, UPC and APC |
| Fiber type | SM G657A2 |
| Cable Diameter | 3.0mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >200N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH or TPU Black Jacket |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
| Item | Parameter | Unit | Specification (SM G657A2/G657B3) |
|---|---|---|---|
| Mode Field Diameter | 1310nm | μm | 8.2~9.0 |
| Mode Field Diameter | 1550nm | μm | 9.1~10.1 |
| Cladding Diameter | μm | 125±0.7 | |
| Cladding Non-Circularity | ％ | ≤0.7 | |
| Core-Cladding Concentricity Error | μm | ≤0.5 | |
| Coating Diameter | μm | 245±5 | |
| Coating Non-Circularity | ％ | ≤6.0 | |
| Cladding-Coating Concentricity Error | μm | ≤12 | |
| Cable Cutoff Wavelength | nm | λcc ≤1260 | |
| Attenuation (Max) | 1310nm | dB/KM | ≤0.36 |
| Attenuation (Max) | 1550nm | dB/KM | ≤0.25 |
| Macro-Bending Loss | 1 Turn x 7.5mm radius@1550nm | dB | ≤0.08 |
| Macro-Bending Loss | 1 Turn x 7.5mm radius@1265nm | dB | ≤0.25 |
| Component | Description |
|---|---|
| Optical Fiber | Fiber count: 1, Color: Red |
| Tight Buffer Fiber | Material: LSZH, Diameter: 0.85±0.05 mm, Color: Red, One-time stripping length: 5-8 mm |
| Strength Member | Material: Aramid yarn |
| Outer Jacket | Material: TPU, Diameter: 3.0±0.2 mm, Color: Black |
| Test | Standard | Performance |
|---|---|---|
| Tensile performance | IEC 60794-1-2-E1 | Short-term: 800N, Long-term: 300N |
| Crush Resistance | IEC 60794-1-E3 | Short-term: 500N, Long-term: 100N |
| Cable Impact | IEC 60794-1-E4 | No damage to outer jacket and inner elements |
| Repeat Bending | IEC 60794-1-E6 | Compliant |
| Torsion | IEC 60794-1-E7 | Compliant |
| Cable Bend | IEC 60794-1-E11 | Compliant |
| Temperature Range | IEC 60794-1-2-F1 | -20℃ to +60℃ |
| Bending Radius | Static | 10mm |
| Bending Radius | Dynamic | 20mm |
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Established in 2000 with over 400 employees, Takfly has 21 years of manufacturing experience in fiber optic products. Our product range includes MPO/MTP Patch cords, Fiber Optic Patchcords, pigtails, adapters, attenuators, PLC Splitters, WDM/CWDM/DWDM, Termination Boxes, Fast Connectors, Media Converters, POE Switches, SFP Transceivers, and High Power products.
ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR, and Anatel
Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO
R&D team with over 26 engineers, OEM and ODM services available
High quality products, competitive pricing, fast delivery (2-7 days), and professional guidance to help customers expand business and increase sales.
