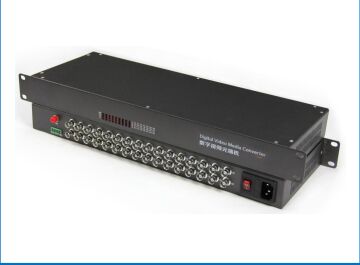

32 Channel Video Digital Optical Converter
جزئیات محصول:
| محل منبع: | چین ، شنژن |
| نام تجاری: | DF/OEM/Nuetral |
| گواهی: | CE/ROHS/REACH/ISO9001/ISO14001 |
| شماره مدل: | TK-PC-48F-SC-OS2-50M |
پرداخت:
| مقدار حداقل تعداد سفارش: | قابل مذاکره |
|---|---|
| قیمت: | negotiable denpend on QTY |
| جزئیات بسته بندی: | جعبه تاول + کارتن |
| زمان تحویل: | 5-9 روز کاری به QTY بستگی دارد |
| شرایط پرداخت: | Western Union، T/T، MoneyGram/Paypal |
| قابلیت ارائه: | 1000 قطعه در روز |
|
اطلاعات تکمیلی |
|||
| نام محصول: | مبدل نوری دیجیتال 32 کاناله | کانال ویدیویی: | 32 |
|---|---|---|---|
| پهنای باند ویدئو: | 5-8 مگاهرتز | نرخ نمونه: | 8 بیت/10 بیت |
| نسبت سیگنال به نویز: | ≥ 65dB | سیستم سیگنال: | PAL / NTSC / SECAM |
| رابط داده: | RS485 | نرخ داده: | DC-256Kbps |
| برند فیبر: | "کارنینگ"، "یو اف سی"، "او اف اس"، "دراک" | طول موج انتقال: | 1310nm/1550nm |
| رابط نوری: | FC / PC | محدوده دینامیکی نوری: | 17 دسی بل |
| دمای عملیاتی:: | -40 ℃ ~ +75 ℃ | ||
| برجسته کردن: | 32 channel digital optical converter,video optical converter with warranty,high power digital optical converter,video optical converter with warranty,high power digital optical converter |
||
توضیحات محصول
32 Channel Video Digital Optical Converter
This series of Digital Optical Converters adopts all-digital communication technology, capable of simultaneously transmitting 32 forward video channels and 1 reverse RS485/422 data channel over a single fiber. Utilizing non-compressed digital video encoding compatible with PAL, NTSC, and SECAM formats, it delivers broadcast-level image quality.
Featuring plug-and-play design for simple installation without on-site commissioning, these converters operate reliably across various environments with prolonged stability. LED status indicators monitor power and operational parameters, while lightning-proof design ensures equipment stability with no electromagnetic, radio frequency, or ground current interference.
Product Features
- Fully-digital, non-compressed broadcast fiber optic transmission
- Ultra-optical dynamic range, no adjustment required during use
- Compatible with PAL, NTSC, SECAM and other video formats
- RS232/485/422 data communication
- Three-level lightning protection
- Industrial design with high reliability for harsh environments
- Automatic power adjustment, temperature compensation, and overload protection with auto-restoration
- Full Surface Mount Technology
Performance Specifications
Video Indicators
| Parameter | Specification |
|---|---|
| Video Channels | 32 |
| Video Bandwidth | 5~8 MHz |
| Sample Rate | 8bit/10bit |
| Signal to Noise Ratio | ≥ 65dB |
| Differential Gain | <1% (typical) |
| Differential Phase | <0.8° (typical) |
| Vertical Tilt | <0.5% (max) |
| Input/Output Impedance | 75Ω (unbalanced) |
| Input/Output Level | 1.0Vpp (typical) |
| Signal System | PAL/NTSC/SECAM |
Data Indicators
| Parameter | Specification |
|---|---|
| Data Interface | RS485/422 (optional) |
| Physical Interface | Five industrial terminal |
| Data Rate | DC-256Kbps |
| Bit Error Rate | <10E-12 |
Optical Indicators
| Parameter | Specification |
|---|---|
| Transmission Wavelength | 1310nm/1550nm |
| Optical Interface | FC/PC |
| Transmit Optical Power | -8dB |
| Receiver Sensitivity | -25dB |
| Optical Dynamic Range | 17dB |
| Maximum Optical Loss | 14dB |
| Transmission Distance | More than 20KM (single) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40℃ ~ +75℃ |
| Humidity | 0 ~ 95% (no condensation) |
| Power Consumption | 2.5W @ DC5V |
| Dimensions | 1U*19' *155mm |
| MTBF | More than 100,000 hours |
Typical Applications
Security/Safe City building security monitoring; Highway and railway transportation remote monitoring systems; Urban public transport monitoring systems; E-police; Operator unattended engine room monitoring; Bank monitoring; Power system remote monitoring; Industrial and mining production process monitoring and management systems; Water flood control and reservoir site monitoring; Airport monitoring; Radio and television image transmission; School campus and examination room monitoring; High-rise buildings, intelligent buildings, intelligent communities, shopping malls and alarm monitoring; Customs barrier and warehouse video surveillance; Petrochemical facilities; Prison video surveillance; Confidential government agencies or departments monitoring and alarm systems; Military areas and military command control positions visualization; Forest fire command systems.
Product Images
Why Choose TAKFLY
- More than 25 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported Injection Machines and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM Brand acceptance
- Exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check raw material incoming inspection before production
- Full check after every individual process completion
- Full check of production half-done items
- Full check of finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available according to request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly, our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise upon receipt, please provide photos for our reference. Our QC department will investigate and provide appropriate solutions, and we will implement improvements for future production.
Q6: What is your terms of packing?
A6: Generally, we pack goods in blister boxes and cartons, and can accommodate custom packaging requests.
Q7: What is your terms of payment?
A7: T/T 30% deposit, with 70% balance due before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, delivery takes 5-7 working days after receiving advance payment. Specific timing depends on items ordered and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture according to your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
