FTTH Loop Back Fiber Optic Patchcord APC/UPC SM/MM
جزئیات محصول:
| محل منبع: | چین ، شنژن |
| نام تجاری: | DF/OEM/Nuetral |
| گواهی: | CE/ROHS/REACH/ISO9001/ISO14001 |
| شماره مدل: | TK-PC-48F-SC-OS2-50M |
پرداخت:
| مقدار حداقل تعداد سفارش: | قابل مذاکره |
|---|---|
| قیمت: | negotiable denpend on QTY |
| جزئیات بسته بندی: | جعبه تاول + کارتن |
| زمان تحویل: | 5-9 روز کاری به QTY بستگی دارد |
| شرایط پرداخت: | Western Union، T/T، MoneyGram/Paypal |
| قابلیت ارائه: | 1000 قطعه در روز |
|
اطلاعات تکمیلی |
|||
| نام محصول: | FTTH Loop Back Fiber Optic Patchcord | طول موج: | 850،1300،1310،1550 نانومتر |
|---|---|---|---|
| نوع فیبر: | SM (G652، G655، G657)، MM (OM1-OM5) | قطر کابل: | 2.0، 3.0 یا سفارشی (Simplex/Duplex) |
| از دست دادن درج: | ≤ 0.3 دسی بل | از دست دادن: | UPC≥50.0dB، APC≥60.0dB، MM≥35.0dB |
| تکرارپذیری: | ≤ 0.1 | استحکام کششی: | >70N |
| دمای عملیاتی: | -20 ℃ ~ 60 ℃ | دمای ذخیره سازی: | -40 ℃ ~ 85 ℃ |
| مواد غلاف بیرونی: | PVC، LSZH، TPU | شعاع خمشی (استاتیک/دینامیک): | 10d/20d |
| طول: | سفارشی | برند فیبر: | "کارنینگ"، "یو اف سی"، "او اف اس"، "دراک" |
توضیحات محصول

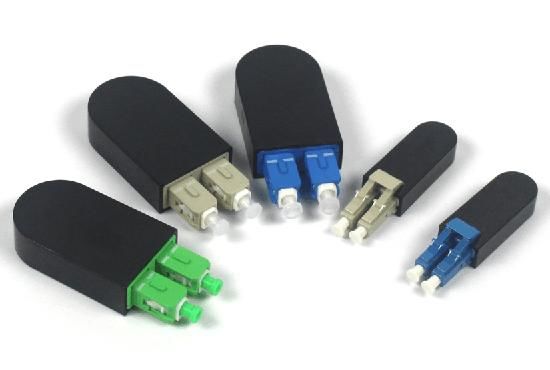

FTTH Loop Back Fiber Optic Patchcord APC/UPC SM/MM
Loopback provides a media of return path for a signal, no matter the signal is for testing purposes or network restoration. In the case of testing, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem. Its performance is as good as that of a general. Available type including SC, MT-RJ, MU and LC. Bare fiber, 0.9mm cable, 2.0/3.0mm cable are all available.
Product Applications
- Device pig-tailing
-
Premise networks
- Patch panel applications
- Meet various requirements of market and clients
Product Features
- Low insertion loss and high return loss
-
Good exchangeability and durability
- Compact design
SC type:
Short wavelength devices
Compatible with Fast Ethernet
Fiber Channel, ATM, and Gigabit Ethernet
LC type:
Communications connections
Equipment interconnection
Loopback for network components testing
Product Specifications
| End face type | UPC and APC |
|---|---|
| Fiber type | SM (G652,G655,G657); MM (OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized (Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature |
-20ºC to +60ºC
|
| Storage Temperature |
-40ºC to +85ºC
|
| Outer Sheath Material | PVC, LSZH, TPU |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
