FC Simplex Fiber Optic Pigtail UPC and APC PVC/LSZH
جزئیات محصول:
| محل منبع: | چین ، شنژن |
| نام تجاری: | DF/OEM/Nuetral |
| گواهی: | CE/ROHS/REACH/ISO9001/ISO14001 |
| شماره مدل: | TK-PC-48F-SC-OS2-50M |
پرداخت:
| مقدار حداقل تعداد سفارش: | قابل مذاکره |
|---|---|
| قیمت: | negotiable denpend on QTY |
| جزئیات بسته بندی: | جعبه تاول + کارتن |
| زمان تحویل: | 5-9 روز کاری به QTY بستگی دارد |
| شرایط پرداخت: | Western Union، T/T، MoneyGram/Paypal |
| قابلیت ارائه: | 1000 قطعه در روز |
|
اطلاعات تکمیلی |
|||
| نام محصول: | FC Simplex Fiber Optic Pigtail | از دست دادن intertion: | ≤0.3dB |
|---|---|---|---|
| از دست دادن: | UPC SM≥50dB، APC SM≥ 60dB، PC MM ≥ 35dB | نوع فیبر: | SM (G652، G655، G657)؛ MM (OM1-OM5) |
| قطر کابل: | 2.0، 3.0 یا سفارشی (Simplex/Duplex) | نوع اتصال دهنده: | SC/UPC |
| ماده ژاکت: | LSZH/PVC | رنگ: | زرد یا سفارشی |
| طول موج: | 1310 نانومتر، 1550 نانومتر | طول: | 10M، 20M یا سفارشی |
| دمای عمل: | -20 ℃ 70 ℃ | قطر فیبر: | 9/125 |
| برند فیبر: | "کارنینگ"، "یو اف سی"، "او اف اس"، "دراک" | ||
| برجسته کردن: | FC Simplex fiber optic pigtail UPC,APC fiber optic pigtail LSZH,PVC fiber optic pigtail simplex,APC fiber optic pigtail LSZH,PVC fiber optic pigtail simplex |
||
توضیحات محصول
FC Simplex Fiber Optic Pigtail UPC and APC PVC/LSZH
Optic pigtail, only one end with connector, but the other end is the fiber core of optical cable, which is used for the connection between optical termination box and equipment. One end of the pigtail is spliced with the fiber core of fiber optic cable, and the other end could use LC, SC, FC, ST connector to connect with optical media converter or optical transceivers, etc., finally realizing the optical data transmission.
Fiber Optic Pigtail Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Fiber Optic Pigtail Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Pigtail Specifications
| End face type | UPC and APC |
|---|---|
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 0.9, 2.0, 3.0 or customized (Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |

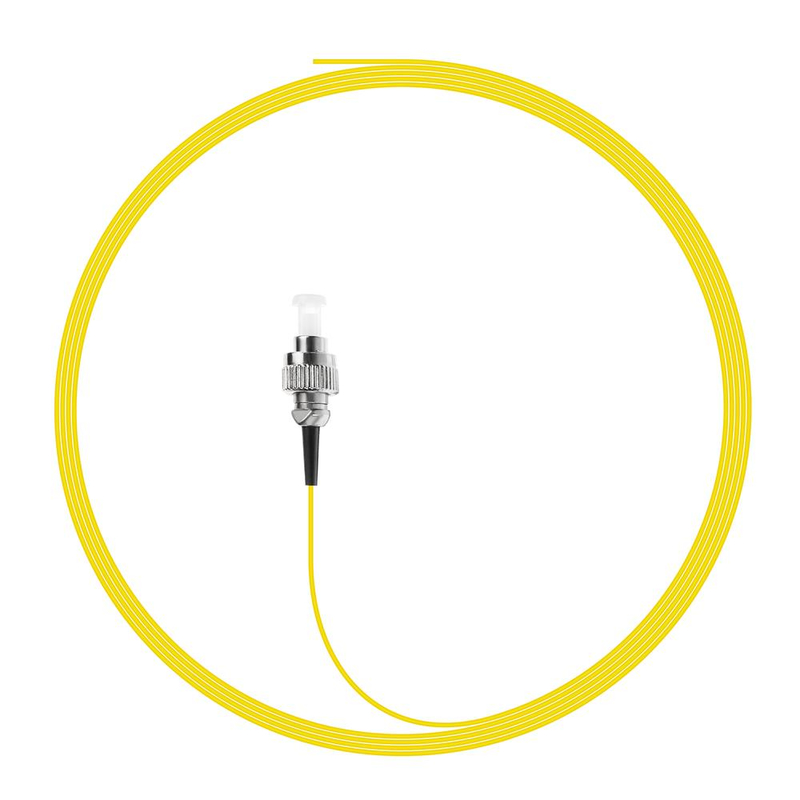

Pigtail Picture
Why Choose TAKFLY
Professional Manufacturer
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
