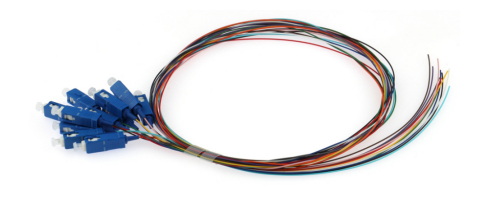

SC UPC 0.9mm 12 Color Fiber Optic Pigtail Simplex SM G652D 2M
جزئیات محصول:
| محل منبع: | چین ، شنژن |
| نام تجاری: | DF/OEM |
| گواهی: | CE/ROHS/REACH/ISO9001ISO14001 |
| شماره مدل: | TK-PT-SC/UPC |
پرداخت:
| مقدار حداقل تعداد سفارش: | قابل مذاکره |
|---|---|
| قیمت: | negotiable denpend on QTY |
| جزئیات بسته بندی: | جعبه تاول + کارتن |
| زمان تحویل: | 5-9 روز کاری به QTY بستگی دارد |
| شرایط پرداخت: | Western Union، T/T، MoneyGram/Paypal |
| قابلیت ارائه: | 2000 مجموعه / روز |
|
اطلاعات تکمیلی |
|||
| نام محصول: | SC UPC 12 رنگ فیبر نوری Pigtail | از دست دادن intertion: | ≤0.3dB |
|---|---|---|---|
| از دست دادن: | UPC SM≥50dB | نوع فیبر: | SM G652D |
| قطر: | 0.9 میلی متر | نوع اتصال دهنده: | SC/UPC |
| ماده ژاکت: | LSZH | رنگ: | 12 رنگ |
| طول: | 2 متر یا سفارشی | دمای عمل: | -20 ℃ 70 ℃ |
| دمای ذخیره سازی: | -40 ℃ ~ 80 ℃ | ||
| برجسته کردن: | SC UPC fiber optic pigtail simplex,0.9mm G652D fiber optic pigtail,12 color fiber optic pigtail 2M,0.9mm G652D fiber optic pigtail,12 color fiber optic pigtail 2M |
||
توضیحات محصول
SC UPC 0.9mm 12 Color Fiber Optic Pigtail Simplex SM G652D 2M
SC UPC 12 Color Fiber Optic Pigtail
Fiber Optic Pigtail Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Fiber Optic Pigtail Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Pigtail Specifications
| End face type | SC/UPC |
|---|---|
| Fiber type | SM G652D |
| Cable Diameter | 0.9mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 2M |
Why Choose TAKFLY - Advantages
Professional Manufacturer
- With more than 25 years manufacturing experience in Fiber optic products
- More than 600 assembly workers with 5 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
Price: If your QTY is big, the price could be negotiated.
If you're interested in our products or have any doubt, feel free to contact us!
