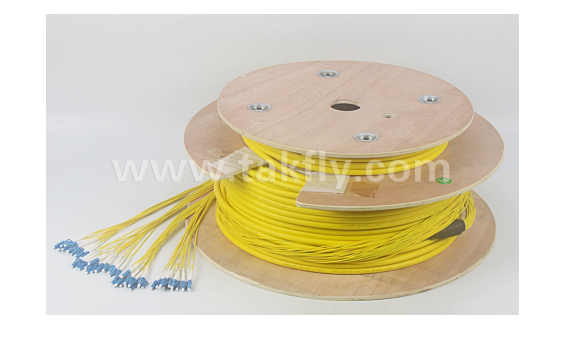

48 Cores SC UPC Pigtail Single Mode 2.5M LSZH Jacket
جزئیات محصول:
| محل منبع: | چین ، شنژن |
| نام تجاری: | DF/OEM/Nuetral |
| گواهی: | CE/ROHS/REACH/ISO9001/ISO14001 |
| شماره مدل: | TK-PC-48F-SC-OS2-50M |
پرداخت:
| مقدار حداقل تعداد سفارش: | قابل مذاکره |
|---|---|
| قیمت: | negotiable denpend on QTY |
| جزئیات بسته بندی: | جعبه تاول + کارتن |
| زمان تحویل: | 5-9 روز کاری به QTY بستگی دارد |
| شرایط پرداخت: | Western Union، T/T، MoneyGram/Paypal |
| قابلیت ارائه: | 1000 قطعه در روز |
|
اطلاعات تکمیلی |
|||
| نام محصول: | 48F فیبر نوری Fanout Pigtail | از دست دادن intertion: | ≤0.3dB |
|---|---|---|---|
| از دست دادن: | UPC SM≥50dB | نوع فیبر: | Corning SM G652D |
| قطر فانوت: | 1.6mm/2.0mm | نوع اتصال دهنده: | SC/UPC |
| ماده ژاکت: | LSZH | رنگ: | زرد یا سفارشی |
| طول موج: | 1310 نانومتر، 1550 نانومتر | طول: | 10M، 20M یا سفارشی |
| دمای عمل: | -20 ℃ 70 ℃ | قطر فیبر: | 9/125 |
| برند فیبر: | "کارنینگ"، "یو اف سی"، "او اف اس"، "دراک" | ||
| برجسته کردن: | 48 cores fiber optic pigtail,single mode SC UPC pigtail,LSZH jacket fiber pigtail,single mode SC UPC pigtail,LSZH jacket fiber pigtail |
||
توضیحات محصول
48 Cores SC UPC Pigtail Single Mode 2.5M LSZH Jacket
Fiber Optic Pigtail Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Fiber Optic Pigtail Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Pigtail Specifications
| End face type | UPC and APC |
|---|---|
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 12.5mm(Fiber optic sub unit 2.0mm) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |
Why choose TAKFLY
Professional manufacturer:
- With more than 21 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
