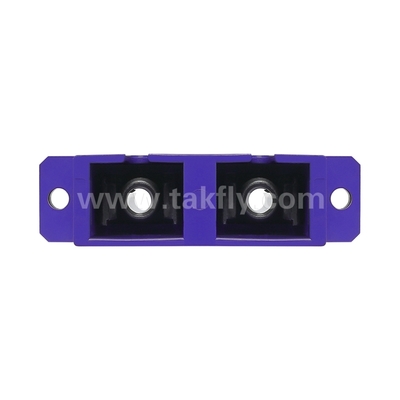

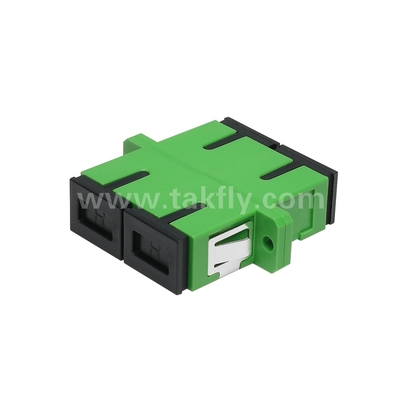

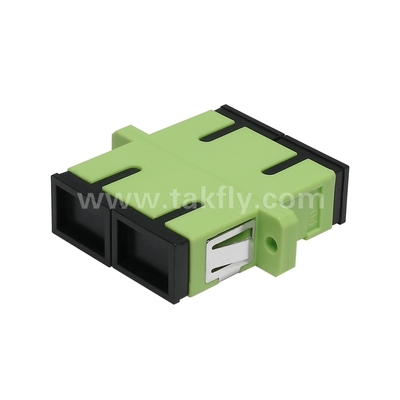

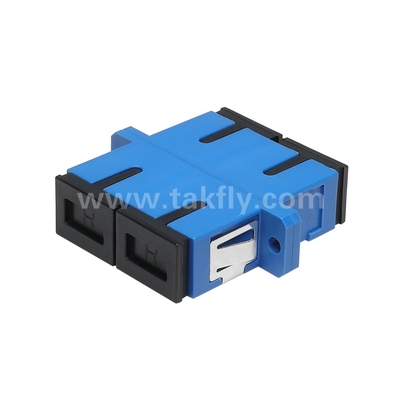

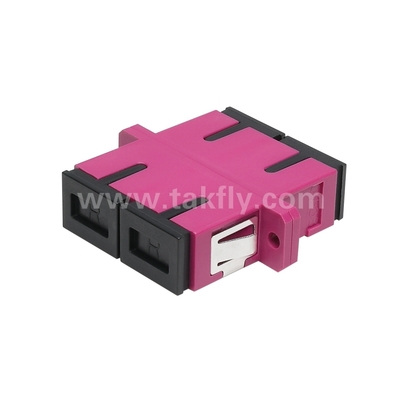

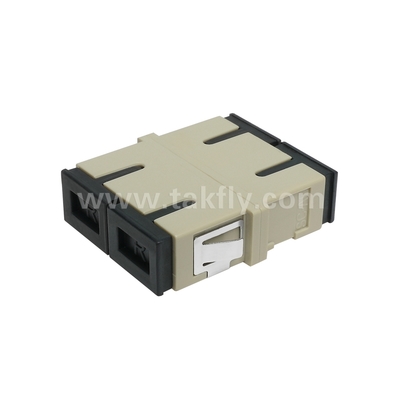

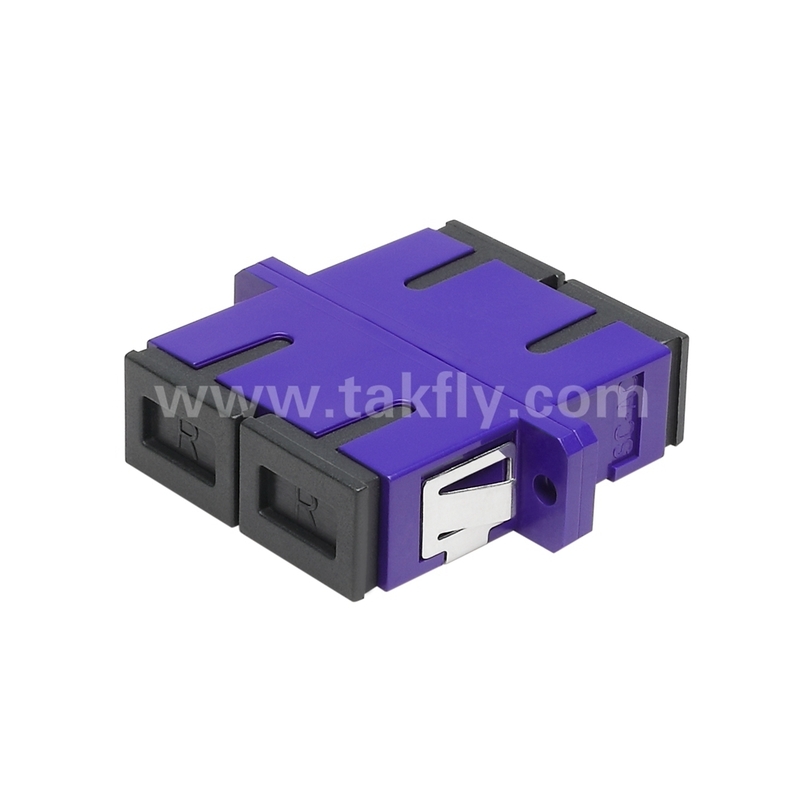

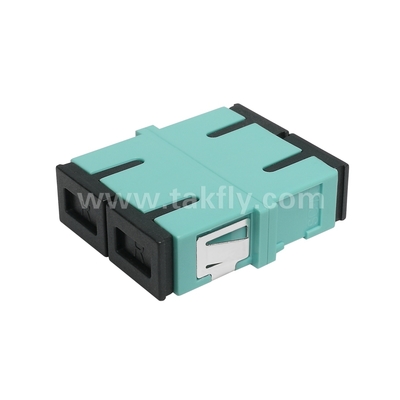

SC Duplex Fiber Optic Adapter Singlemode Multimode APC UPC
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OEM |
| گواهی: | CE/REACH/RoHS |
| شماره مدل: | TK-FOA-SCD-888 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 |
|---|---|
| قیمت: | 0.14USD |
| جزئیات بسته بندی: | جعبه کارتن 55*40*35cm |
| زمان تحویل: | 3 تا 5 روز |
| شرایط پرداخت: | T/T ، Western Union ، MoneyGram |
| قابلیت ارائه: | 100000 در هفته |
|
اطلاعات تکمیلی |
|||
| از دست دادن ورودی: | ≤0.2dB | شمارش فیبر: | دوبلکس |
|---|---|---|---|
| رنگ: | آبی/آبی/گل رز/سبز/بژ/آهک سبز | دمای عملیاتی: | -40 تا 85 درجه سانتیگراد |
| برجسته کردن: | SC duplex fiber optic adapter,singlemode multimode fiber adapter,APC UPC fiber optic connector,singlemode multimode fiber adapter,APC UPC fiber optic connector |
||
توضیحات محصول
SC Duplex Fiber Optic Adapter Singlemode Multimode APC UPC
Product Attributes
| Attribute | Value |
|---|---|
| Insertion loss | ≤0.2dB |
| Fiber count | Duplex |
| Color | Blue/Aqua/Rose/Green/Beige/Lime Green |
| Operating temperature | -40~85℃ |
Product Description
The SC Duplex Fiber Optic Adapter is designed for connecting fiber optic connectors, enabling efficient coupling of output power from transmitting to receiving fibers. This crucial component facilitates cable-to-cable or cable-to-equipment connections. TAKFLY SC adapters feature easy installation, low insertion loss, excellent interchangeability, and reliable performance across extreme temperature ranges.
Key Features
- Available in both singlemode and multimode configurations
- Zirconia sleeves or phosphor bronze sleeve options
- Compatible with NTT standards
- Space-saving flange or flange-free duplex options
- Compliant with JIS5974 and Bellcore GR-326 standards
- Meets IEC874-14 & IEC874-19 specifications
- All components ROHS compliant
Technical Specifications
| Adapter type | SC | Optical fiber | Singlemode or Multimode |
|---|---|---|---|
| Insertion loss | ≤ 0.2dB | Mating Durability (500 times) | Additional Loss ≤0.1dB |
| Temperature Stability (-40℃～85℃) | Additional Loss ≤0.2dB | Operating Temperature | -40℃～+85℃ |
| Storage Temperature | -40℃～+85℃ | ||
