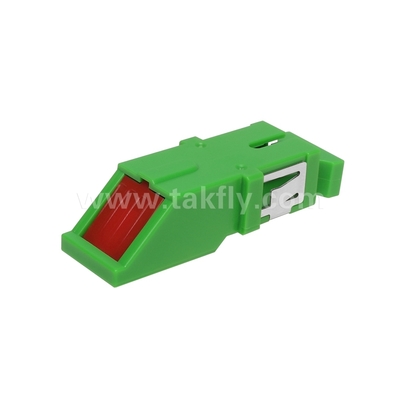

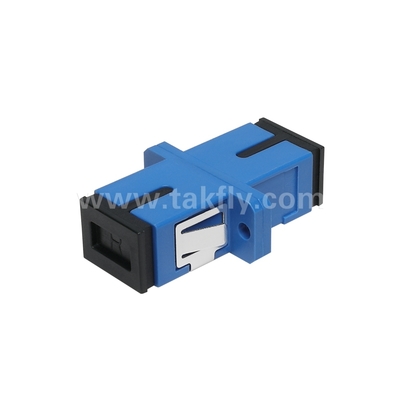

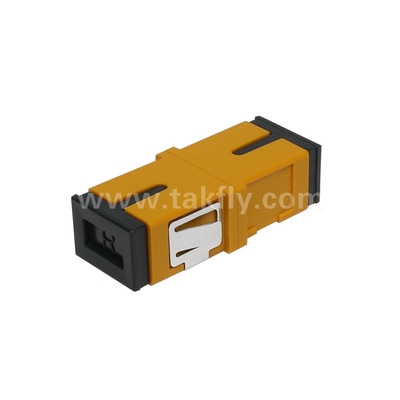

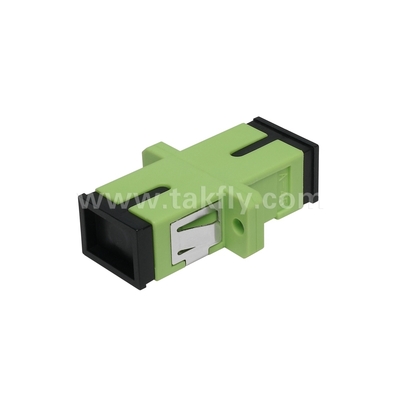

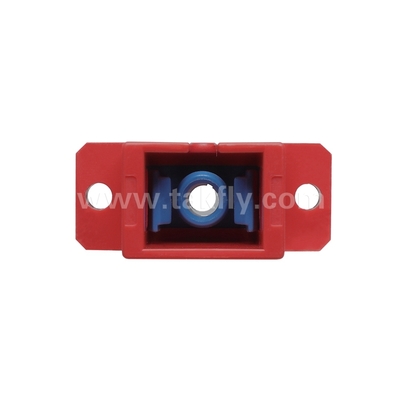

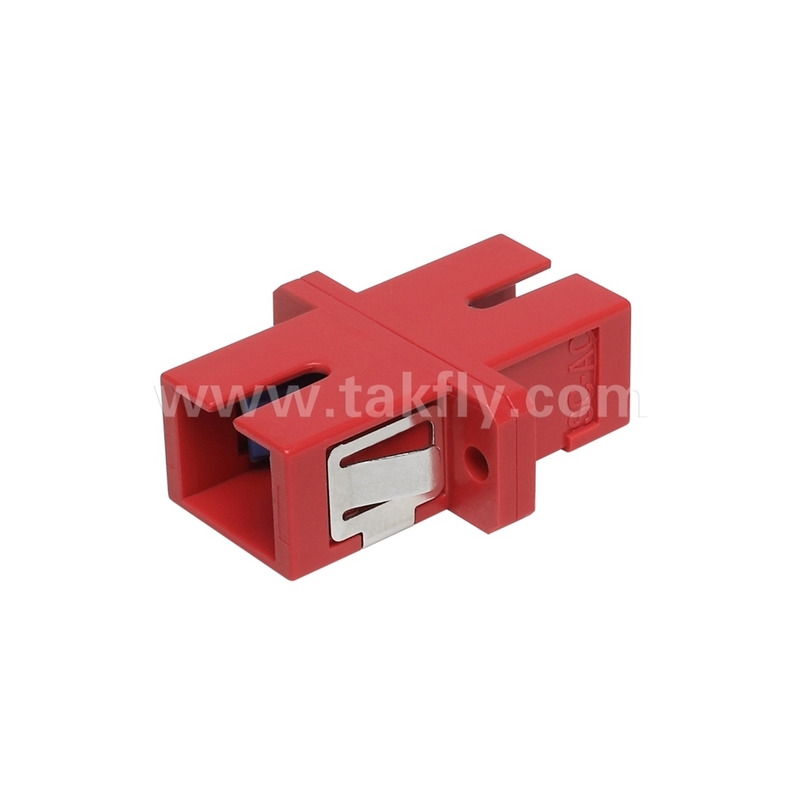

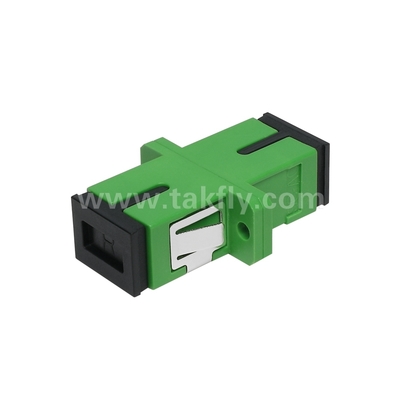

SC Simplex Fiber Optic Adapter Multimode APC UPC Low Loss
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OEM |
| گواهی: | CE/REACH/RoHS |
| شماره مدل: | TK-FOA-SCS-888 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 |
|---|---|
| قیمت: | 0.08USD |
| جزئیات بسته بندی: | جعبه کارتن 55*40*35cm |
| زمان تحویل: | 3 تا 5 روز |
| شرایط پرداخت: | T/T ، Western Union ، MoneyGram |
| قابلیت ارائه: | 100000 در هفته |
|
اطلاعات تکمیلی |
|||
| از دست دادن ورودی: | ≤0.2dB | شمارش فیبر: | سیمپلکس |
|---|---|---|---|
| رنگ: | آبی/آبی/گل رز/سبز/بژ/آهک سبز | دمای عملیاتی: | -40 تا 85 درجه سانتیگراد |
| برجسته کردن: | SC simplex fiber optic adapter,multimode APC fiber adapter,low loss UPC fiber adapter,multimode APC fiber adapter,low loss UPC fiber adapter |
||
توضیحات محصول
SC Simplex Fiber Optic Adapter Multimode APC UPC Low Loss
Product Attributes
| Attribute | Value |
|---|---|
| Insertion loss | ≤0.2dB |
| Fiber count | Simplex |
| Color | Blue/Aqua/Rose/Green/Beige/Lime green |
| Operating temperature | -40~85℃ |
Product Description
The fiber optic adapter is designed for connecting fiber optic connectors, enabling efficient coupling of output power from transmitting to receiving fibers. These SC adapters are ideal for cable-to-cable or cable-to-equipment connections. TAKFLY SC adapters feature easy installation, low insertion loss, excellent interchangeability, and superior temperature resistance.
Key Features
- Compatible with both single mode and multimode applications
- Available with zirconia sleeves or phosphor bronze sleeves
- NTT standard compatible design
- Space-saving options: available with or without flanges for duplex configurations
- Compliant with JIS5974 and Bellcore GR-326 standards
- Meets IEC874-14 & IEC874-19 specifications
- All components ROHS compliant
Technical Specifications
| Adapter type | SC | Optical fiber | Singlemode or Multimode |
| Insertion loss | ≤0.2dB | Mating Durability (500 times) | Additional Loss≤0.1dB |
| Temperature Stability (-40℃～85℃) | Additional Loss≤0.2dB | Operating Temperature | -40℃～+85℃ |
| Storage Temperature | -40℃～+85℃ |
