LC Quad Fiber Optic Adapter Singlemode Multimode APC UPC
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OEM |
| گواهی: | CE/REACH/RoHS |
| شماره مدل: | TK-FOA-LCD-888 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 |
|---|---|
| قیمت: | 0.50USD |
| جزئیات بسته بندی: | جعبه کارتن 55*40*35cm |
| زمان تحویل: | 3 تا 5 روز |
| شرایط پرداخت: | T/T ، Western Union ، MoneyGram |
| قابلیت ارائه: | 100000 در هفته |
|
اطلاعات تکمیلی |
|||
| از دست دادن ورودی: | ≤0.2dB | شمارش فیبر: | qaud |
|---|---|---|---|
| رنگ: | آبی/آبی/گل رز/سبز/بژ/آهک سبز | دمای عملیاتی: | -40 تا 85 درجه سانتیگراد |
| برجسته کردن: | LC duplex fiber adapter single mode,fiber optic adapter APC UPC,single mode LC duplex adapter,fiber optic adapter APC UPC,single mode LC duplex adapter |
||
توضیحات محصول

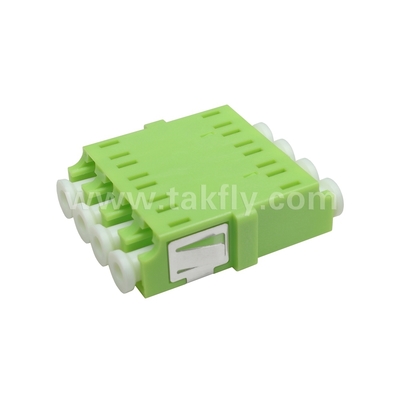

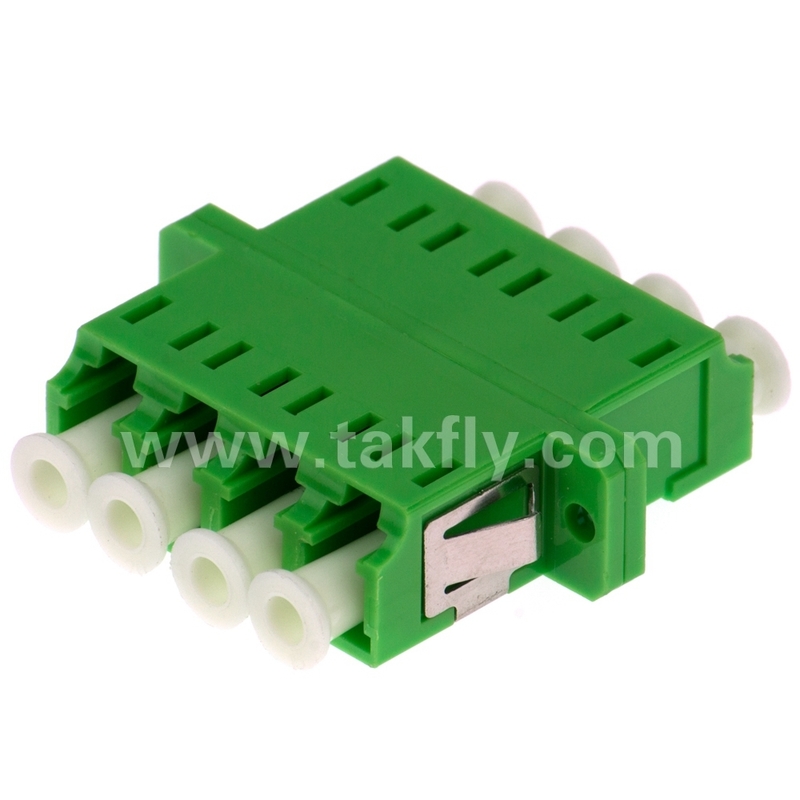

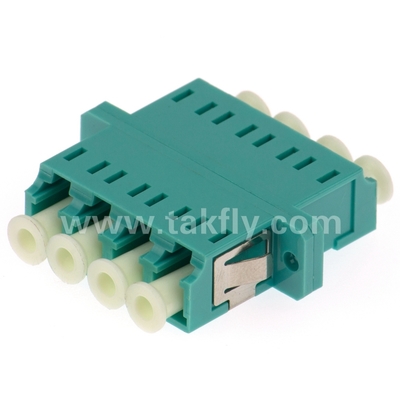

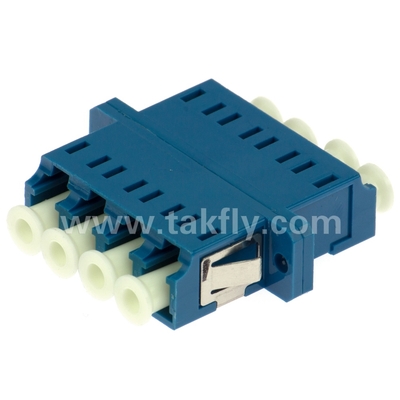

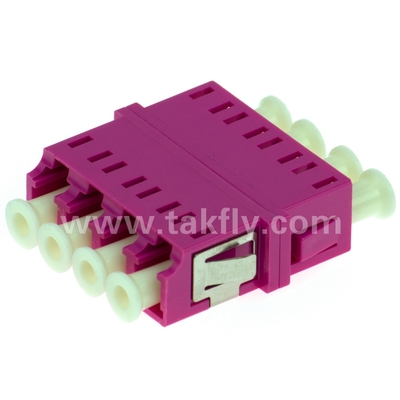

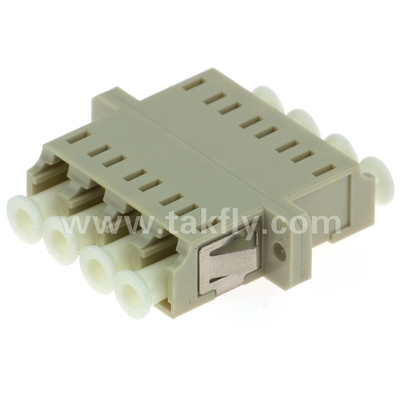

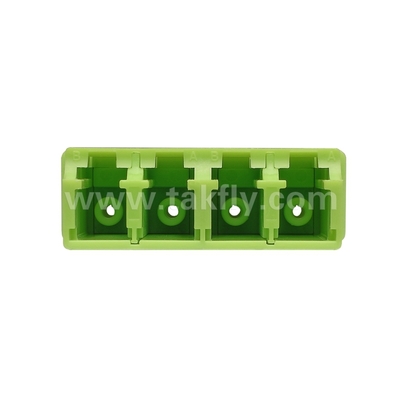

LC Quad Fiber Optic Adapter Singlemode Multimode APC UPC
Product Attributes
| Attribute | Value |
|---|---|
| Insertion loss | ≤0.2dB |
| Fiber count | Quad |
| Color | Blue/Aqua/Rose/Green/Beige/Lime green |
| Operating temperature | -40~85℃ |
Product Description
The LC Quad Fiber Optic Adapter is designed for connecting fiber optic connectors, efficiently coupling output power from transmitting fiber to receiving fiber. It serves as a reliable solution for cable-to-cable or cable-to-equipment connections in various network configurations.
Key Features
- Single mode and Multimode compatibility
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Patch panel mount applications
- Compliant with JIS5974 and Bellcore GR-326 standards
- Meets IEC874-14 & IEC874-19 specifications
- All parts compliant with ROHS
Technical Specifications
| Product | LC Adapter |
|---|---|
| Mode | SM | MM |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability (500 times) | Additional Loss ≤0.1dB |
| Temperature Stability (-40℃～85℃) | Additional Loss ≤0.2dB |
| Operating Temperature | -40℃～+85℃ |
| Storage Temperature | -40℃～+85℃ |
TAKFLY LC adapters feature easy installation, low insertion loss, excellent interchangeability, and superior resistance to both high and low temperatures.
