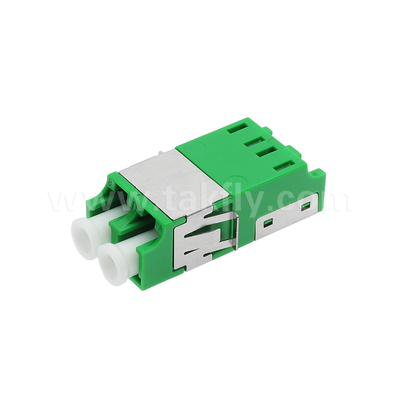

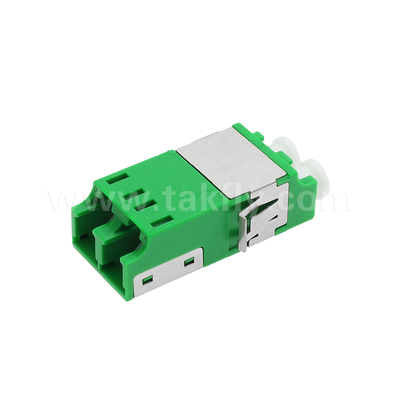

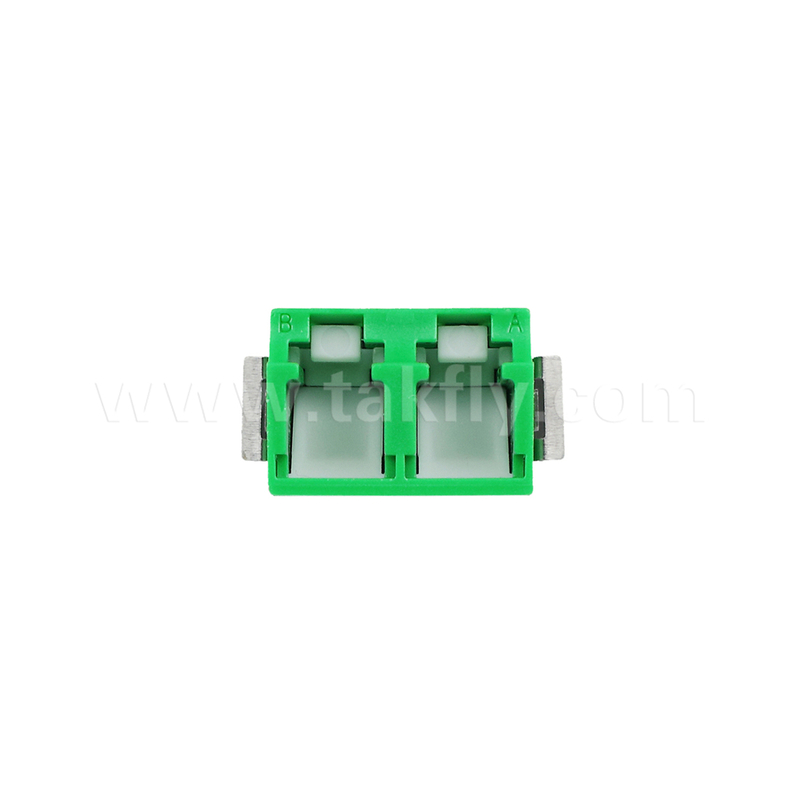

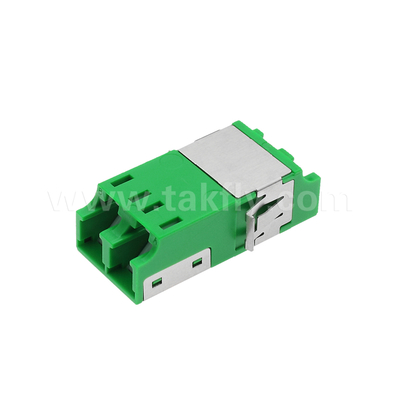

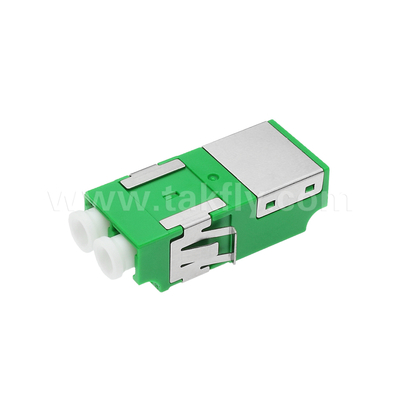

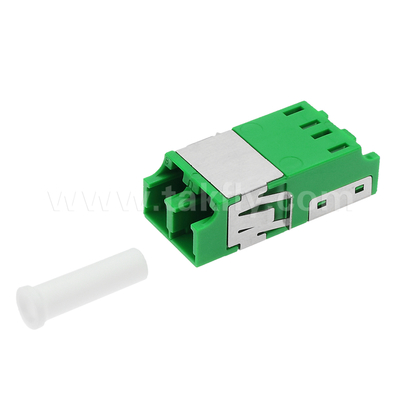

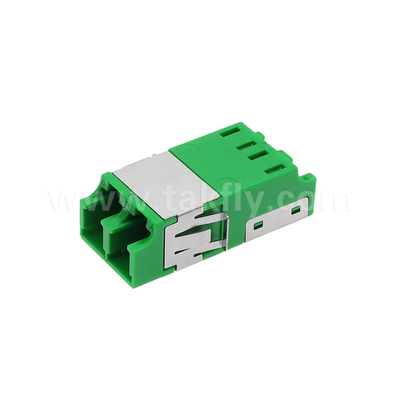

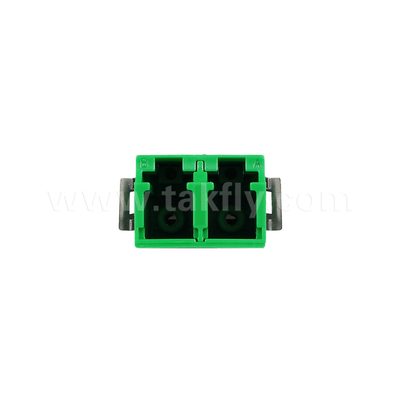

LC Duplex Fiber Optic Adapter Single Mode APC UPC No Flange
جزئیات محصول:
| Place of Origin: | China |
| نام تجاری: | OEM |
| گواهی: | CE/REACH/RoHS |
| Model Number: | TK-FOA-LCD-777 |
پرداخت:
| Minimum Order Quantity: | 100 |
|---|---|
| قیمت: | 0.71~0.76USD |
| Packaging Details: | Carton box 55*40*35cm |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 100000/week |
|
اطلاعات تکمیلی |
|||
| Insertion loss: | ≤0.2dB | Fiber count: | duplex |
|---|---|---|---|
| Color: | Blue/Aqua/Rose/Green | Operating temperature: | -40~85℃ |
| برجسته کردن: | LC duplex fiber adapter single mode,APC UPC fiber optic adapter,no flange LC duplex adapter,APC UPC fiber optic adapter,no flange LC duplex adapter |
||
توضیحات محصول
Built-in light baffle Fiber optic adapter/coupler LC Duplex adapter singlemode APC UPC without flange LC fiber optic adapter
Product Attributes
| Attribute | Value |
|---|---|
| Insertion loss | ≤0.2dB |
| Fiber count | duplex |
| Color | Blue/Aqua/Rose/Green |
| Operating temperature | -40~85℃ |
Product Description
Fiber optic adapter is the component applicable for the connection between fiber optic connectors, which can help couple the output power from the transmitting fiber into the receiving fiber at the maximum. Moreover, it's also mainly used for the connection between the cables or the cables and the equipment as well. LC adapters from TAKFLY are featured with easy installation, low insertion loss, good interchangeability and high & low temperature resistance.
Features
- 9.4mm height, enabling high-strength, high-density assembly.
- Built-in light baffle provides dust-proof and laser radiation protection.
- Highly reliable structure design.
- Built with high performance material.
Specifications
| Colour | Meeting Standards | Sleeve | Flange | Port |
|---|---|---|---|---|
| Blue | RoHS | Ceramics | Without | 2/4/6/8/12 |
| Aqua | UL 94-V0 | Ceramics | Without | 2/4/6/8/12 |
| Rose | IEC-61754-20-2012 | Ceramics | Without | 2/4/6/8/12 |
| Green | IEC 61300 | Ceramics | Without | 2/4/6/8/12 |
